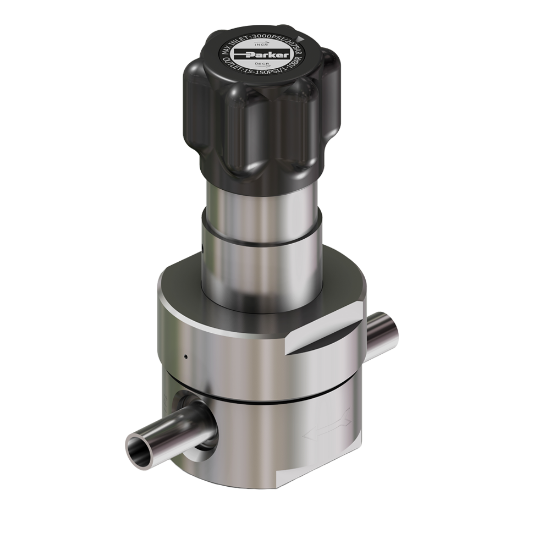

Parker FR1403HS5K2PFS8FF - FR1400

The FR1400 is an ultrahigh purity, tied diaphragm, regulator for high pressure gas delivery in semiconductor and other clean processes. Capable of high flow, it is an excellent choice for cylinder or point of use bulk and specialty gas applications

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FR1403HS5K2PFS8FF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Poppet Material	Hastelloy C-22®	Internal Leak Rate	4 x 10-8 scc/sec He
Port Connection	Female, Female	Maximum Inlet Pressure Rating	3000
Diaphragm Material	Hastelloy C-22®	Number of Ports	2
Flow Coefficient	0.5	Proof Pressure	4,500 psig
Seat Retainer Material	316L SS, Hastelloy C-22®	Port Type	1/2" Face Seal
Seat Material	PCTFE	Body Material	316L Stainless Steel
Division	Veriflo Division	Outlet Pressure Rating	1-30 psig
External Leak Rate	2 x 10-10 scc/sec He	Burst Pressure	9,000 psig
Maximum Inlet Pressure (psig)	3000	Body Material	316L Stainless Steel
Outlet Pressure	1-30 psig	Number of Ports	2
Seat Material	PCTFE	Port Connection	Female, Female
Flow Coefficient (Cv)	0.5	Port Connection Type	1/2" Face Seal
