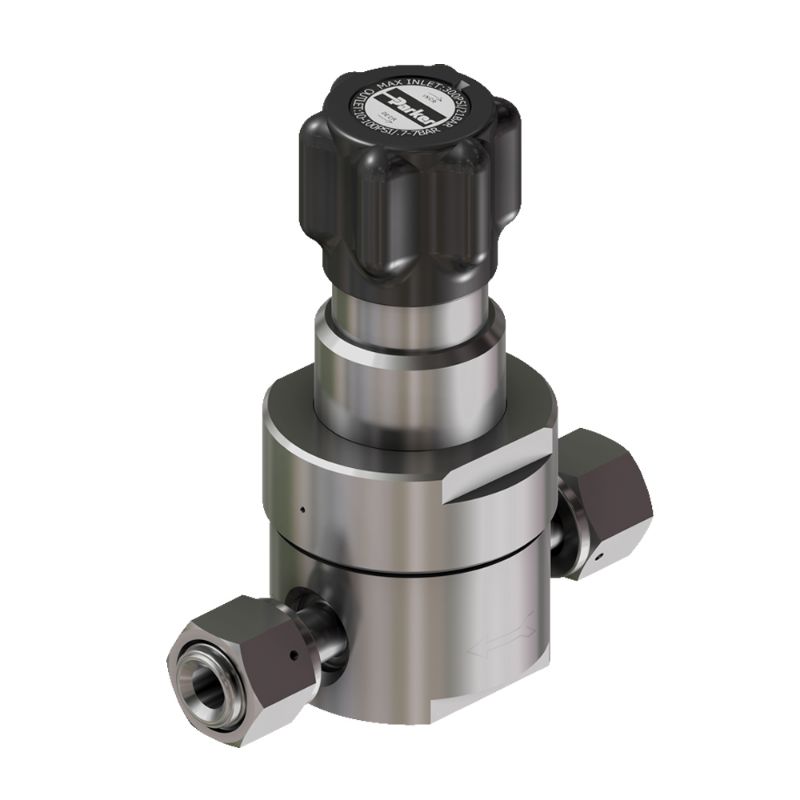

Parker FR1203HS12K2PFSFF - UHP High-flow Tied-diaphragm Pressure Regulator (up to 3/4 inch) – FR1200 Series

The FR1200 Series Tied-diaphragm Regulator offers high flow and excellent leak integrity at inlet pressures up to 1,700 psig. It has a low spring rate for high sensitivity and is ideal for ultra-high purity bulk and specialty gas delivery systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FR1203HS12K2PFSFF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	316L Stainless Steel	Division	Veriflo Division
Seat Material	PCTFE	Volume	1/4"- 1.02 in3 (16.7 cm3)1<br/>1/2" - 1.41 in3 (23.1 cm3)1<br/>3/4" - 2.42 in3 (39.7 cm3)1
Surface Finish	Passivated & Electropolished	Poppet Material	316L Stainless Steel (std)
Flow Coefficient	1.2	Diaphragm Material	Ni-Cr-Mo alloy (Hastelloy® or equivalent)
Internal Leak Rate	≤ 4 x 10-8 scc/sec He	Operating Temperature	-40 to 150
Outlet Pressure Rating	1 - 30 psig	Burst Pressure	5100 psig
Proof Pressure	2,550 psig	External Leak Rate	≤ 2 x 10-10 scc/sec He (Inboard)
Inlet Pressure Rating	0 - 1700	Supply Pressure Effect	6.8 psig / 100 psig
Port Type	1/4" Female Face Seal	Body Material	316L Stainless Steel
Outlet Pressure	1 - 30 psig	Inlet Pressure Range (psig)	0 - 1700 psig
Inlet Port Connection Type	1/4" Female Face Seal	Outlet Port Connection Type	1/4" Female Face Seal
