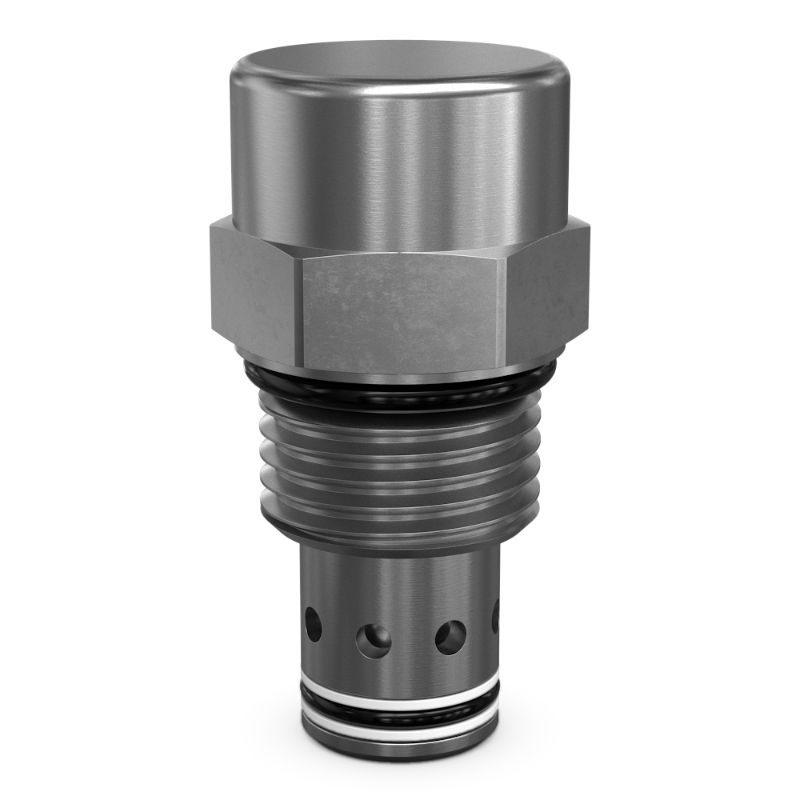

Parker FR101S135 - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FR101S135

$70.13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	3500 psi	Minimum Operating Temperature	-30 °F
Flow Rate	6 Gal/min	Weight	0.5 lb
Function	Flow Control	Adjustment Mechanism	Screw
Cavity Size	C10-2	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	22.5 L/min	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Installation Torque	16 (Aluminum), 48 (Steel) lb-ft
Standard Flow Rate Setting	N/A L/min	Maximum Operating Pressure	245 bar
Configuration	Partial Reverse Flow	Flow Rate Accuracy	30%
Flow Rate Display Range	4.1-6.4 L/min	Seal Material	Nitrile
Adjustment Mechanism	Screw	Standard Flow Rate Setting	N/A
Configuration	Partial Reverse Flow	Maximum Flow Rate	7 GAL/MIN, 26.5 L/MIN
Flow Rate Display Range	1.1-1.7 GAL/MIN, 4.1-6.4 L/MIN
