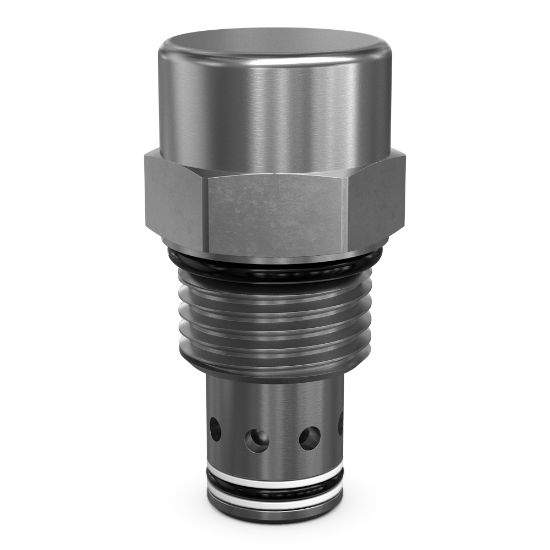

Parker FR101F100 - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FR101F100

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3500 psi
Maximum Flow Rate	6 Gal/min	Flow Rate	6 Gal/min
Weight	0.5 lb	Minimum Operating Temperature	-35 °C
Function	Flow Control	Operation Type	Automatic
Cavity Size	C10-2	Adjustment Mechanism	Fixed
Maximum Operating Temperature	+250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Compensated
Installation Torque	22 (Aluminum), 65 (Steel) Nm	Maximum Operating Pressure	245 bar
Standard Flow Rate Setting	3.8 L/min	Flow Rate Accuracy	20%
Configuration	Partial Reverse Flow	Flow Rate Display Range	N/A Gal/min
Seal Material	Nitrile	Adjustment Mechanism	Fixed
Standard Flow Rate Setting	1 GAL/MIN, 3.8 L/MIN	Flow Rate Display Range	N/A
Configuration	Partial Reverse Flow	Maximum Flow Rate	6 GAL/MIN, 22.5 L/MIN
