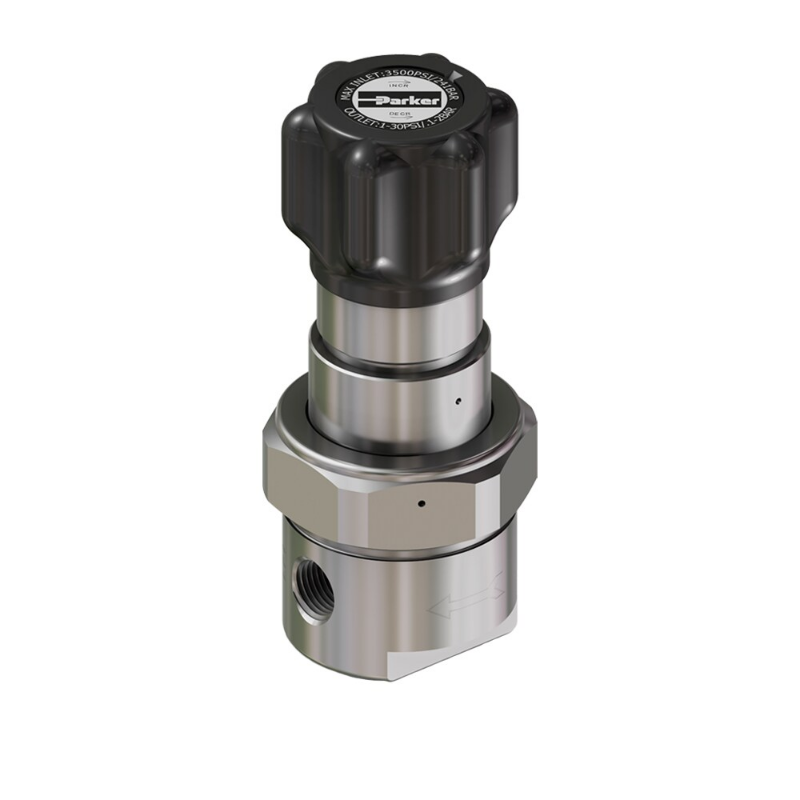

Parker FR1001D15V2PFS6MMTH - UHP Single Stage Pressure Reducing Regulator - FR1000 Series

The FR1000 is an ultrahigh purity regulator for gas delivery in semiconductor and other clean processes. With low to intermediate flow, it is an excellent choice for valve manifold boxes, gas cabinets, and other semiconductor manufacturing applications

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FR1001D15V2PFS6MMTH

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Poppet Material	316L Stainless Steel	Flow Coefficient	0.15
Outlet Pressure Rating	1-10 psig	Volume	0.49
Seat Material	PCTFE	Division	Veriflo Division
Options	Hastelloy Trim (Poppet)	Internal Leak Rate	4 x 10 -8 scc/sec He
Body Material	316L Stainless Steel Double Melt	Filter Material	Hastelloy C-22®
Operating Temperature	-40°F to 150°F (-40°C to 66°C)	Port Type	3/8" Face Seal
Maximum Inlet Pressure Rating	3500	Number of Ports	2
Diaphragm Material	Hastelloy C-22®	Port Connection	Male, Male
Surface Finish	10 Ra microinch (.25 micrometer), 25 Ra (Optional)	Number of Ports	2
Port Connection	Male, Male	Outlet Pressure	1-10 psig
Port Connection Type	3/8" Face Seal	Flow Coefficient (Cv)	0.15
Body Material	316L Stainless Steel Double Melt
