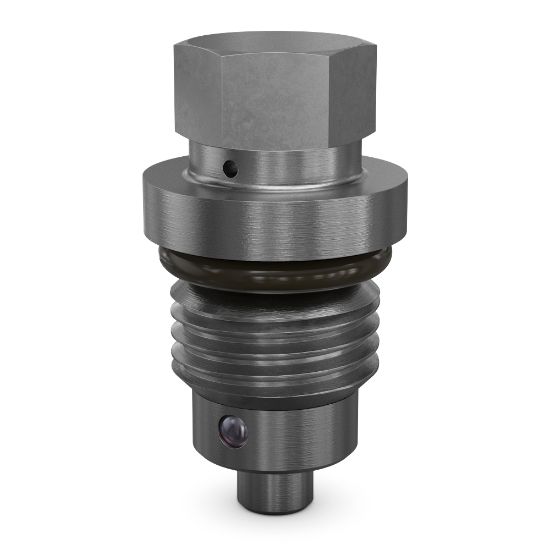

Parker FR032010 - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FR032010

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Flow Rate Accuracy	15%	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Maximum Operating Pressure	345 bar
Standard Flow Rate Setting	0.1 Gal/min	Adjustment Mechanism	Tamper Resistant
Function	Flow Control	Seal Material	Fluorocarbon
Weight	0.045 lb	Flow Rate	0.3 Gal/min
Cavity Size	ES10436	Operation Type	Automatic
Configuration	Insert	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Minimum Operating Temperature	-15 °F
Operating Temperature	-15 to +400 °F	Maximum Inlet Pressure Rating	5000 psi
Flow Rate Display Range	N/A Gal/min	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Valve Material	All parts steel. All operating parts hardened steel	Actuation Type	Pressure Compensated
Installation Torque	13 lb-ft	Maximum Flow Rate	1.13 L/min
Seal Material	Fluorocarbon	Flow Rate Display Range	N/A
Maximum Flow Rate	0.3 GAL/MIN, 1.13 L/MIN	Configuration	Insert
Standard Flow Rate Setting	0.1 GAL/MIN, 0.38 L/MIN	Adjustment Mechanism	Fixed
