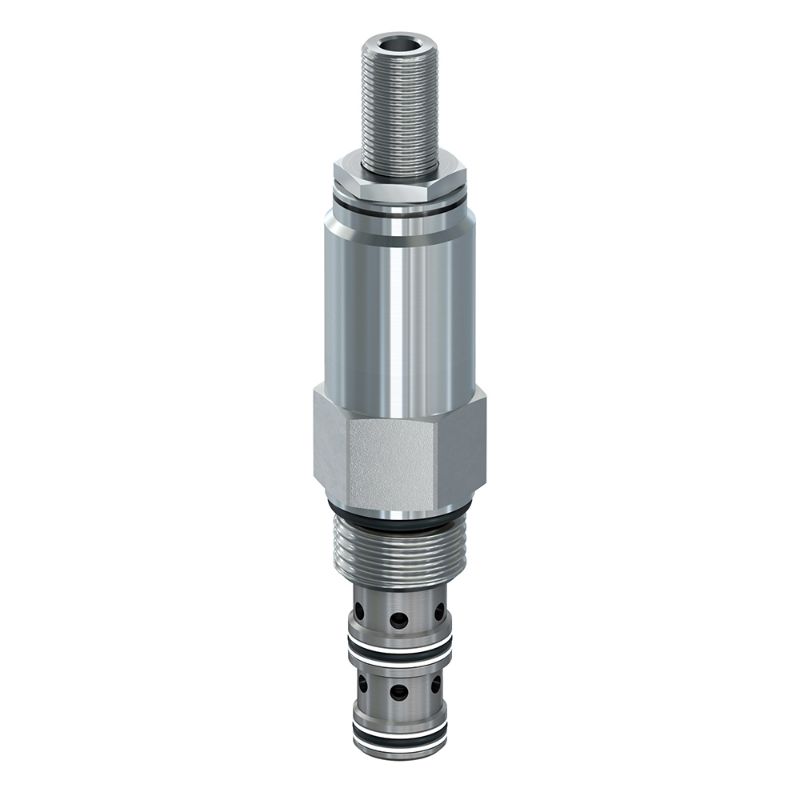

Parker FP101K295 - Pressure Compensated Priority Flow Control Valves

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FP101K295

$92.63

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	56.3 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	Flow Regulator Valve
Weight	0.23 kg	Configuration	Priority Flow
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Manually operated
Connection Size	n/a	Seal Material	Nitrile
Maximum Operating Temperature	+121 °C	Division	Hydraulic Systems Division
Adjustment Mechanism	Knob	Standard Flow Rate Setting	N/A L/min
Maximum Operating Pressure	3500 psi	Installation Torque	22 Nm
Maximum Inlet Pressure Rating	245 bar	Flow Rate Display Range	8.6-13.5 L/min
Operating Temperature	-34 to +121 °C	Maximum Flow Rate	15 Gal/min
Minimum Operating Temperature	-30 °F	Cavity Size	C10-3
Maximum Priority Flow	9 Gal/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate Accuracy	20%	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Regulated Flow Rate	N/A L/min	Actuation Type	Pressure Compensated
Valve Material	All parts steel. All operating parts hardened steel	Standard Flow Rate Setting	N/A
Adjustment Mechanism	Knob	Seal Material	Nitrile
Flow Rate Display Range	2.3-3.6 GAL/MIN, 8.6-13.5 L/MIN	Maximum Flow Rate	15 GAL/MIN, 56.3 L/MIN
