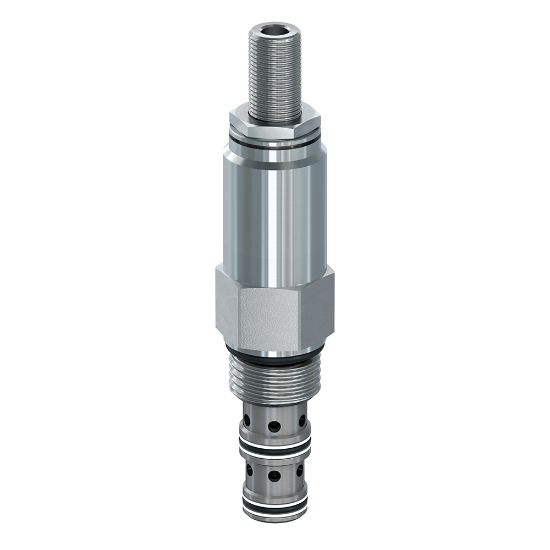

Parker FP101F100V - Pressure Compensated Priority Flow Control Valves

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FP101F100V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.5	Flow Rate Accuracy	20%
Flow Rate Display Range	N/A L/min This is the regulated flow range (min - max)	Flow Rate	15
Division	Hydraulic Valve Systems Division	Maximum Operating Pressure	3500
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Flow Rate	15
Operating Temperature	-15 to +400	Body Material	n/a
Seal Material	Fluorocarbon	Division	Hydraulic Systems Division
Actuation Type	Pressure Compensated	Adjustment Mechanism	Fixed
Valve Material	All parts steel. All operating parts hardened steel	Connection Type	n/a
Installation Torque	16	Minimum Operating Temperature	-15
Maximum Priority Flow	8	Operation Type	Automatic
Standard Flow Rate Setting	1	Configuration	Priority Flow
Cavity Size	C10-3	Maximum Operating Temperature	+400
Maximum Inlet Pressure Rating	3500	Connection Size	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	Flow Regulator Valve
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Regulated Flow Rate	N/A
Adjustment Mechanism	Fixed	Seal Material	Fluorocarbon
Flow Rate Display Range	N/A	Maximum Flow Rate	15 GAL/MIN, 56.3 L/MIN
Standard Flow Rate Setting	1 GAL/MIN, 3.8 L/MIN
