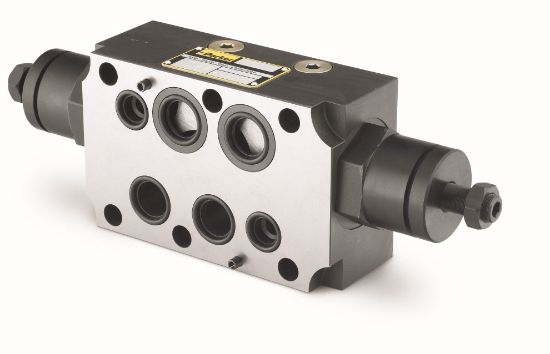

Parker FM6BBKN - Throttle Check Valve - Series FM2 (N.A.)

Parker double-throttle check valves series FM in sandwich design offer an easy configuration of stack systems and provide a very good price-performance ratio. They are optionally available with a cylindrical needle for fine adjustment in NG06 and NG10.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FM6BBKN

$867.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Needle Type	Standard
Cracking Pressure	5	Weight	17.5
Maximum Flow Rate	90	Seal Material	Nitrile
Minimum Operating Temperature	-4	Body Material	Steel
Maximum Operating Temperature	158	Adjustment Mechanism	Knob
Maximum Operating Pressure	3000	Division	Hydraulic Valve Systems Division
Product Series	Throttle check valve	Division	Hydraulic Valve Systems Division
Connection Size	CETOP 08 (NG25)	Actuation Type	Manually
Flow Direction	Meter-in (inverted), Meter-out	Mounting Position	Unrestricted
Connection Type	n/a	Configuration	Single (B port only)
Mounting Type	Sandwich plate	Flow Direction	Meter-in (inverted), Meter-out
Needle Type	Standard	Connection Size	CETOP 08 (NG25)
Maximum Operating Pressure	3000 PSI (205 BAR)	Maximum Flow Rate	90 GAL/MIN (341 L/MIN)
Adjustment Mechanism	Knob

Product resources

Literature and Reference Materials

Cat. MSG14-2500/US Industrial Hydraulic Valves (PDF)
