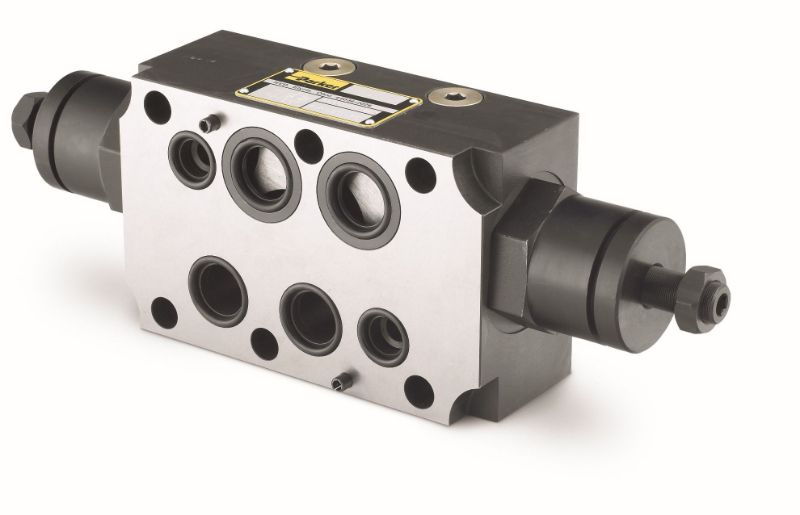

Parker FM6AASN - Throttle Check Valve - Series FM2 (N.A.)

Parker double-throttle check valves series FM in sandwich design offer an easy configuration of stack systems and provide a very good price-performance ratio. They are optionally available with a cylindrical needle for fine adjustment in NG06 and NG10.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FM6AASN

$903.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000
Division	Hydraulic Valve Systems Division	Division	Hydraulic Valve Systems Division
Product Series	Throttle check valve	Weight	17.5
Cracking Pressure	5	Needle Type	Standard
Actuation Type	Manually	Configuration	Single (A port only)
Connection Size	CETOP 08 (NG25)	Mounting Type	Sandwich plate
Adjustment Mechanism	Screw	Seal Material	Nitrile
Minimum Operating Temperature	-4	Maximum Operating Temperature	158
Maximum Flow Rate	90	Mounting Position	Unrestricted
Connection Type	n/a	Body Material	Steel
Flow Direction	Meter-in (inverted), Meter-out	Connection Size	CETOP 08 (NG25)
Needle Type	Standard	Maximum Flow Rate	90 GAL/MIN (341 L/MIN)
Maximum Operating Pressure	3000 PSI (205 BAR)	Adjustment Mechanism	Screw
Flow Direction	Meter-in (inverted), Meter-out

Product resources

Literature and Reference Materials

Cat. MSG14-2500/US Industrial Hydraulic Valves (PDF)
