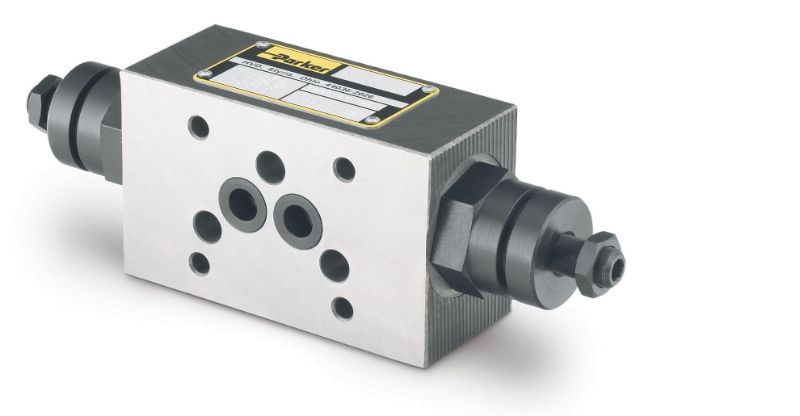

Parker FM3BBKV - Throttle Check Valve - Series FM2 (N.A.)

Parker double-throttle check valves series FM in sandwich design offer an easy configuration of stack systems and provide a very good price-performance ratio. They are optionally available with a cylindrical needle for fine adjustment in NG06 and NG10.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FM3BBKV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Needle Type	Standard	Product Series	Throttle check valve
Maximum Operating Temperature	158	Cracking Pressure	5
Minimum Operating Temperature	-4	Seal Material	Fluorocarbon
Adjustment Mechanism	Knob	Division	Hydraulic Valve Systems Division
Division	Hydraulic Valve Systems Division	Maximum Operating Pressure	5000
Actuation Type	Manually	Maximum Flow Rate	30
Body Material	Steel	Mounting Position	Unrestricted
Connection Type	n/a	Weight	5.2
Flow Direction	Meter-in (inverted), Meter-out	Configuration	Single (B port only)
Connection Size	CETOP 05 (NG10)	Mounting Type	Sandwich plate
Connection Size	CETOP 05 (NG10)	Flow Direction	Meter-in (inverted), Meter-out
Maximum Operating Pressure	5000 PSI (345 BAR)	Needle Type	Standard
Adjustment Mechanism	Knob	Maximum Flow Rate	30 GAL/MIN (113 L/MIN)

Product resources

Literature and Reference Materials

Cat. MSG14-2500/US Industrial Hydraulic Valves (PDF)
