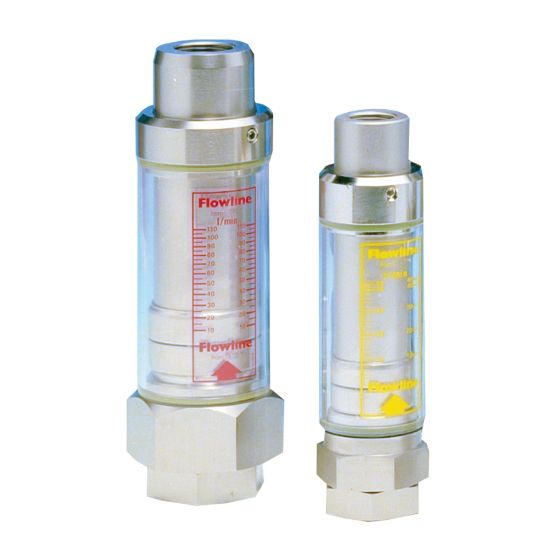

Parker FM26232122 - High Pressure Mechanical Flowmeter - Flowline

The Flowline Series is a range of rugged inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 - 360 L/PM. Maximum allowable working pressure: 350 bar (5076 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FM26232122

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Body Material	Brass	Materials of Construction	Brass
Port Size	1/2 inch	Division	Hydraulic & Industrial Process Filtration Division EMEA
Division	Hydraulic & Industrial Process Filtration Division EMEA	For Fluid Type	Water
Product Style	Flow Meter	Product Type	Condition Monitor
Seal Material	Fluoroelastomer	Industry	Industrial & Chemical Processing
Specifications Met	Pressure Directive	Accuracy	+/- 5% FSD
Operating Pressure	5000 psi	Operating Temperature	-20 to 90 °C
Port Type	BSP Parallel Threads	Sensing Method	Variable Orifice Flow Meter
Width	41 mm	Height	41 mm
Length	165.5 mm	Diameter	46 mm
Flow Rate	2 to 20 L/min	Housing Material	Stainless Steel
For Fluid Type	Water	Flow Rate	2 to 20 l/min
