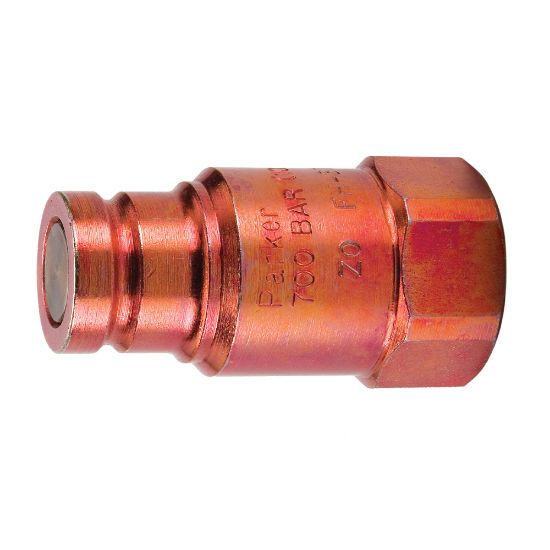

Parker FH-372-6FB - High Pressure, HTMA, Non-Spill, Flat Face Quick Couplings with Sleeve Lock - FH Series

Parker's high pressure non-spill, flat face hydraulic quick couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FH-372-6FB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	HTMA	Maximum Operating Temperature	250.0 °F
Minimum Operating Temperature	-40.0 °F	Seal Material	Nitrile-PTFE
Flow Rate	6.0 Gal/min	Application	Hydraulic, high pressure
Division	Quick Coupling Division	Valve Type	Non-spill
Product Type	Push to Connect	Maximum Operating Pressure	10000.0 psi
Plating Type	Zinc with trivalent chromate, red finish	Hex Size	1.00 inch
Body Material	Steel	Body Size	3/8 inch
Coupling Half	Male Nipple	Connection Type	Female BSPP
Connection Thread Size	G 3/8
