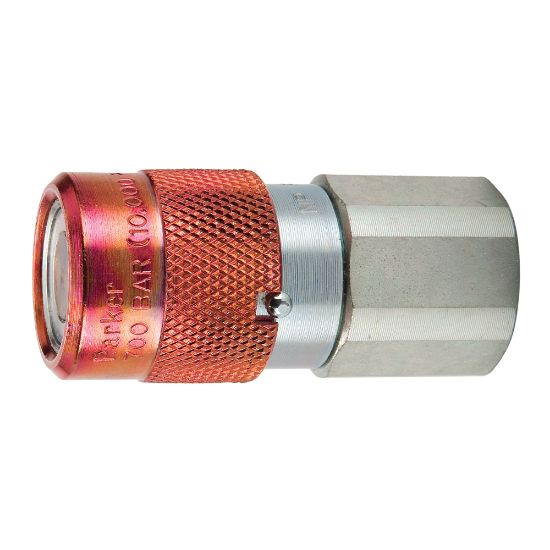

Parker FH-371-6FB - High Pressure, HTMA, Non-Spill, Flat Face Quick Couplings with Sleeve Lock - FH Series

Parker's high pressure non-spill, flat face hydraulic quick couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FH-371-6FB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Non-spill	Product Type	Push to Connect
Hex Size	1.12 inch	Seal Material	Nitrile
Body Material	Steel	Maximum Operating Pressure	10000.0 psi
Maximum Operating Temperature	250.0 °F	Specifications Met	HTMA
Plating Type	Zinc with clear trivalent chromate, red finish on sleeve	Minimum Operating Temperature	-40.0 °F
Flow Rate	6.0 Gal/min	Division	Quick Coupling Division
Application	Hydraulic, high pressure	Body Size	3/8 inch
Coupling Half	Female Coupler	Connection Thread Size	G 3/8
Connection Type	Female BSPP

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
