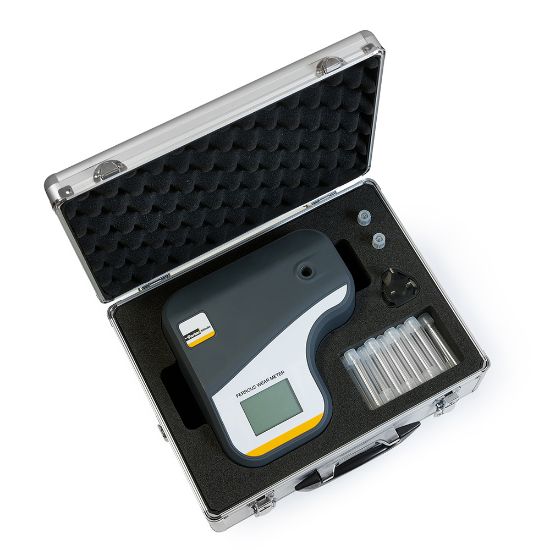

Picture of Parker FG-K30258-KW - Ferrous Wear Meter Plus - Parker FWM+

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker FG-K30258-KW - Ferrous Wear Meter Plus - Parker FWM+

FWM+ monitors ferromagnetic wear debris in a fluid or grease sample that has been in contact with machinery parts, typically used to detect abrasive wear in large 2-stroke engine cylinder drain oil.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. FG-K30258-KW
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Operating Temperature15 to 40 °CSize75 mm x 230 mm x 250 mm (HWD)
Flow Raten/a. Manually fed samplesOperating Pressuren/a. Manually fed samples
Electrical Requirements24 VDCSignal OutputVisual
Cycle Time3 secondWetted MaterialPolypropylene 5 ml test tube
IndustryMarineProduct TypeCondition Monitor
Communication InterfaceLCD visual display onlySensing RangeMagnetic metal particles in fluid 0 to 9990 ppm (mg/kg) and 1 % to 15 %
TechnologyFiltrationBrandKittiwake
DivisionHydraulic & Industrial Process Filtration Division EMEAFor Fluid TypeLube Oil
Sensing MethodFerrographyIngress Protection RatingIP22
Accessories IncludedInstructions, case, 5 mL test tubes, verification standards, power supply with UK, EU and US power adaptorsSensor ConnectionLCD visual display only
FeaturesRapid tesing for magnetic iron in fluid samplesOptionsGrease testing kit
Accuracy+/- 10 ppmConnection Typen/a. Manually fed samples
Weight1.1 kgDivisionHydraulic & Industrial Process Filtration Division EMEA
