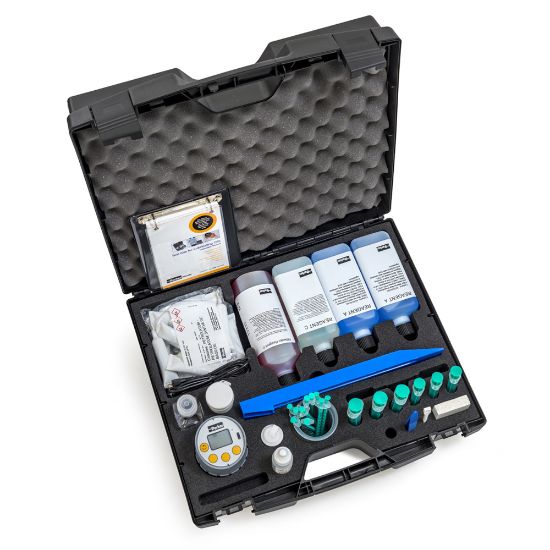

Picture of Parker FG-K3-020-KW - DIGI Plus Oil Test Kits

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker FG-K3-020-KW - DIGI Plus Oil Test Kits

The DIGI+ range of test kits enable rapid on-site monioring of critical oil parameters in remote and marine applications, including base number, acid number, viscosity comparison, plus water, salt and insoluble contamination.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. FG-K3-020-KW
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cycle TimeWater-in-oil: 180 seconds<br/>Base number: 120 secondsSize76 x 112 mm (Diameter x Height)
Product TypeCondition MonitoringDivisionHydraulic & Industrial Process Filtration Division EMEA
Communication InterfaceDisplay with backlight and keypad. Computer interface application.Connection Typen/a. Manually fed samples
BrandParkerWetted MaterialFKM and glass reinforced plastic
DivisionHydraulic & Industrial Process Filtration Division EMEAOperating Temperature10 to 45 °C Ambient
FeaturesFast and effective onsite/Onboard test to measure water-in-oil and/or BN (base number) IndustryTransportation
Flow Raten/a. Manually fed samplesSensing MethodElectrical sense element
Sensor ConnectionMicro-USBAccessories IncludedCarry case, syringes, reagents, goggles, instructions, 50 tests.
Sensing RangeWater-in-oil: 0.02% to 1%, 0.1% to 10%, 0.1% to 20%, 200 ppm to 10000 ppm, 100 ppm to 300 ppm<br/>Base number: 1 to 150 BNOperating Pressuren/a. Manually fed samples
Signal OutputDisplay computer measurement memory download and setup interfaceWeight0.2
AccuracyWater-in-oil: 0.1% up to 1%, then  ± 1% above 1%<br/>Base number: ± 5 BN or 10 % (whichever is greater)TechnologyFiltration
Ingress Protection RatingIP44Electrical RequirementsInternal USB rechargeable battery (micro-USB: 5 V 100 mA minimum)
For Fluid TypeMineral and synthetic fluids compatible: Lubricant oils, hydraulic oils, distillate fuels, and Bio-based fuels. FunctionViscosity
OptionsViscosity (Lube Oil)
