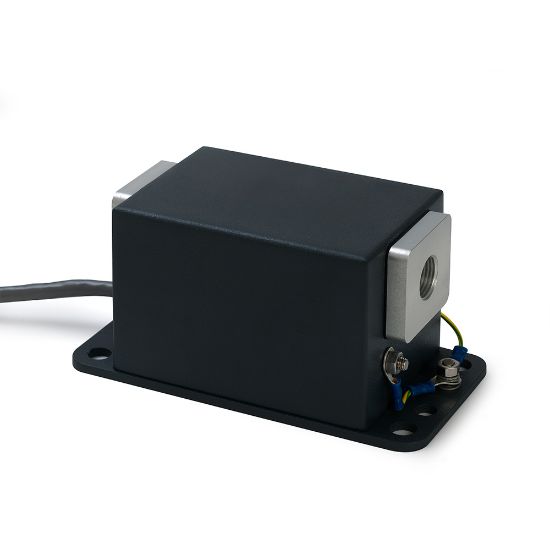

Picture of Parker FG-K19567-KW - MWDS - Metal Wear Debris Sensor (ATEX/IECEx Haz-area option)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker FG-K19567-KW - MWDS - Metal Wear Debris Sensor (ATEX/IECEx Haz-area option)

MWDS differentiates ferrous and non-ferrous metal particles, simultaneously quantifying their metallurgical composition and size in working fluid that has been in contact with machinery parts.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. FG-K19567-KW
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Ingress Protection RatingIP66Connection Type1/2" G (BSP) female ports
Operating Temperature-20 to 70 °COptionsTEX/IECEx version: Zone 1 (II 2 G, Ex mb IIB T5, Ta = -40 to + 65°C)
Electrical Requirements18 to 30 VDCCycle Time30 second
Weight3 kgWetted MaterialPEEK, FKM, anodised aluminium (ATEX: Stainless Steel (316))
Operating Pressure20 bargSize90 mm x 132 mm x 150 mm (HWD)
TechnologyFiltrationFor Fluid TypePetroleum
Flow Rate1.3 L/min to 9 L/min Sensing RangeElectrical sensing coils (inductance)
Communication InterfaceModbusDivisionHydraulic & Industrial Process Filtration Division EMEA
Sensing MethodFerrographyIndustryMarine
FeaturesDNV certified to CG-0339Product TypeCondition Monitor
Accessories IncludedInstructions, software, cable harnessSensor ConnectionPre-wired 2 metre LSHF cable
Accuracy±1 Bin range DivisionHydraulic & Industrial Process Filtration Division EMEA
Signal OutputLED displayBrandParker
ATEX Specifications MetNoFlow Rate0.3 to 1.9 ms-1
