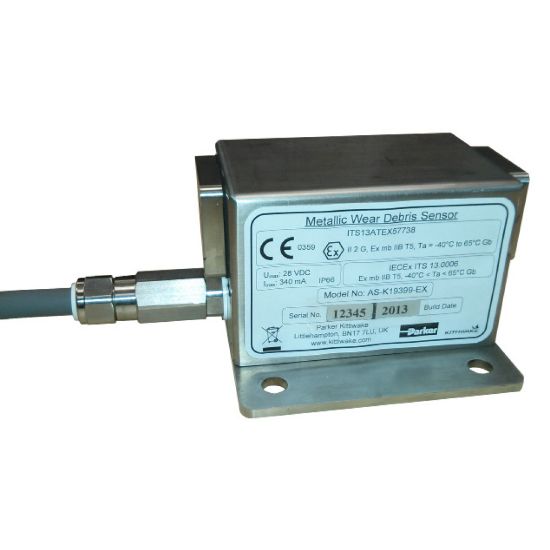

Picture of Parker FG-K19400-EX - MWDS - Metal Wear Debris Sensor (ATEX/IECEx Haz-area option)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker FG-K19400-EX - MWDS - Metal Wear Debris Sensor (ATEX/IECEx Haz-area option)

MWDS differentiates ferrous and non-ferrous metal particles, simultaneously quantifying their metallurgical composition and size in working fluid that has been in contact with machinery parts.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. FG-K19400-EX
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Size90 mm x 132 mm x 150 mm (HWD) For Fluid TypePetroleum
Ingress Protection RatingIP66Connection Type1/2" G (BSP) female ports
FeaturesReal-time detecting and reporting of metallic particles in a fluidSensing MethodFerrography
DivisionHydraulic & Industrial Process Filtration Division EMEATechnologyFiltration
Weight2.2 kgWetted MaterialPEEK, FKM, anodised aluminium (ATEX: Stainless Steel (316))
BrandParkerAccuracy±1 Bin range
DivisionHydraulic & Industrial Process Filtration Division EMEAAccessories IncludedInstructions, software, cable harness
Sensor ConnectionPre-wired 2 metre LSHF cableSignal OutputLED display
Sensing RangeElectrical sensing coils (inductance)Flow Rate1.3 L/min to 9 L/min
Communication InterfaceModbusOptionsTEX/IECEx version: Zone 1 (II 2 G, Ex mb IIB T5, Ta = -40 to + 65°C)
Operating Temperature-20 to 70 °CElectrical Requirements18 to 30 VDC
Cycle Time30 secondIndustryMarine
Operating Pressure145 psiProduct TypeCondition Monitor
ATEX Specifications MetII 2 G, Ex mb IIB T5, Ta = -40 to + 65°CFlow Rate0.3 to 4.5 ms-1
