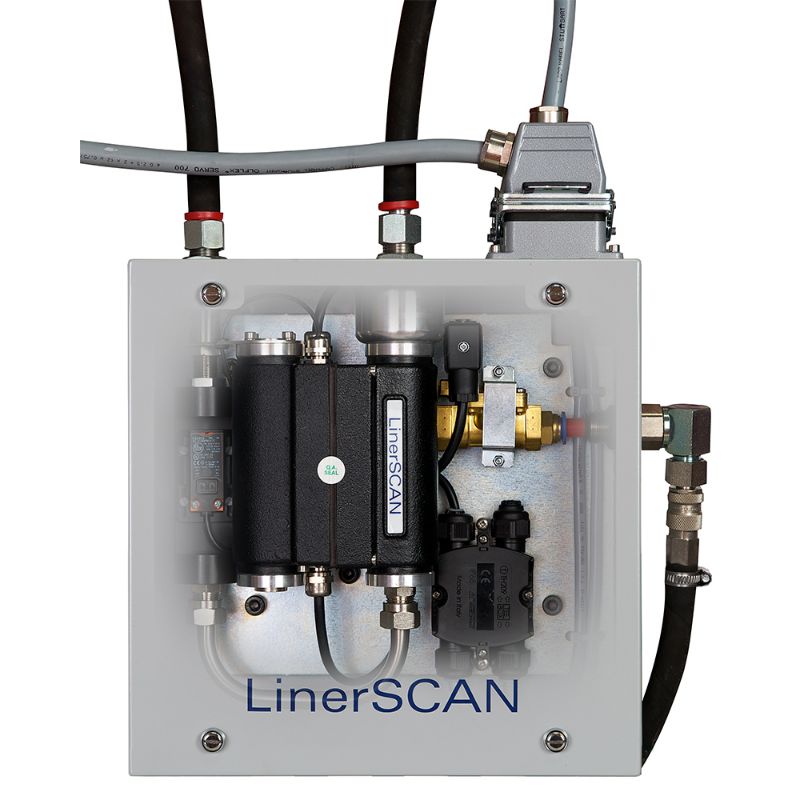

Parker FG-K17400-KW - LinerSCAN - Cylinder Liner Monitor

Parker LinerScan system is designed to remove the uncertainty of cylinder damage resulting from low fuel quality, slow steaming, low sulphur levels, lower oil feed rates and cylinder oil formulation changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FG-K17400-KW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Signal Output	4 to 20	Specifications Met	CE Certification
For Fluid Type	Cylinder Oil	Industry	Marine
Product Type	Condition Monitor	Product Style	Particle Detector/Counter
Communication Interface	CANbus	Cycle Time	30
Electrical Requirements	24	Brand	Kittiwake
Flow Rate	> 30	Weight	17
Seal Material	Fluorcarbon	Height	300
Ingress Protection Rating	IP65	Length	300
Port Type	BSP	Minimum Fluid Temperature	10
Sensing Method	Ferrography	Operating Pressure	10
Division	Hydraulic & Industrial Process Filtration Division EMEA	Port Size	1/2
Technology	Filtration	Body Material	Mild Steel
Operating Temperature	0 to 65	Division	Hydraulic & Industrial Process Filtration Division EMEA
Materials of Construction	Mild Steel	Maximum Fluid Temperature	65
Width	94	Air Inlet Connection Size	1/2” BSP
Options	one per cylinder

Product resources

Literature and Reference Materials

BROCHURE-LinerSCAN - Cylinder Liner Monitor (PDF)
