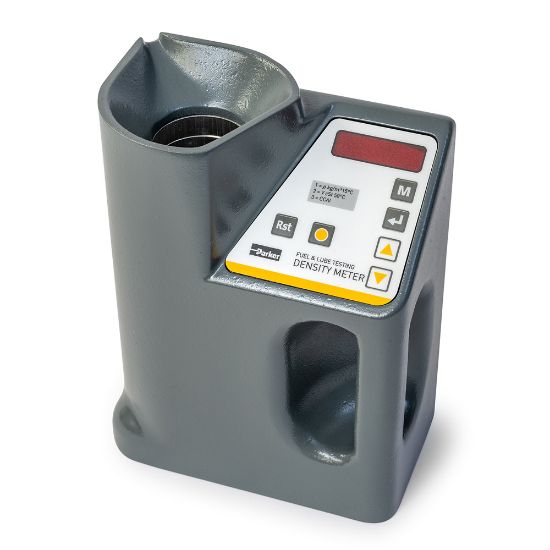

Picture of Parker FG-K1-300-KW - Fuel Oil Density Meter

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker FG-K1-300-KW - Fuel Oil Density Meter

Measure diesel and risidual fuel density to confirm the grade and quantity of fuel delivered. Simple on-board testing at bunkering and point of use, for optimal operation performance.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. FG-K1-300-KW
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Sensing Range800 to 1010 kg/m³ @ 15°C kg/m3 at 15°CElectrical Requirements110 V to 240 V AC 50/60 Hz 200 VA
Signal OutputLED visual display onlyTechnologyFiltration
IndustryTransportationCommunication InterfaceLED digits and keypad
For Fluid TypeMineral, synthetic and bio based fuel and distillate fuels. VLSFO, HFO, MGODivisionHydraulic & Industrial Process Filtration Division EMEA
Cycle TimeHeating from 15°C 10 mins, Repeat test maximum 30 secondsProduct TypeCondition Monitoring
Accessories IncludedThe Density Meter is supplied complete with hydrometers and consumablesSensor ConnectionLED visual display only
Ingress Protection RatingIPX2Connection Typen/a. Manually fed samples
DivisionHydraulic & Industrial Process Filtration Division EMEABrandParker
OptionsThe Density Meter is available standalone or as part of an Oil Analysis SuiteSensing MethodHydrometers
FeaturesMeasuring the density of fuel using hydrometers, the Density Meter can be used to confirm the quantity and grade of fuel delivered.<br/>Density at 15°C in vacuo, centiPoise to centiStokes<br/>Calculated Carbon Aromaticity Index (CCAI)Flow Raten/a. Manually fed samples
AccuracyTypically within ± 0.1% (800-1010 kg/m³)Operating Pressuren/a. Manually fed samples
Operating Temperature10 to 40 °C ambientWetted MaterialAluminium, Epoxy
Size235 x 180 x 105 mm (HWD)Weight2,2 kg
