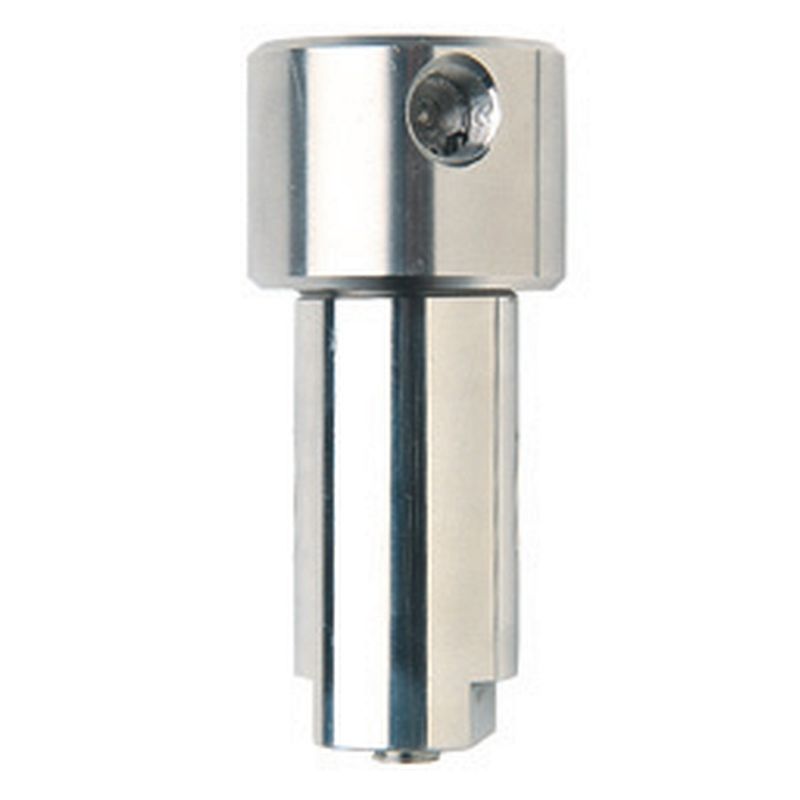

Parker FFC-116N - Compressed Natural Gas (CNG) Assemblies – Racor FFC Series

Racor FFC CNG Filter / Service Elements protect alternative fuel system injectors and components by removing aerosol contaminants in CNG as small as 0.3 – 0.6 micron with up to 99.97% efficiency.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-116N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Series	Cartridge CNG Fuel Filter	Drain	Plug
Application	Onboard CNG powered vehicles	Operating Features	0.25 oz. sump capacity
Compatible Element	CLS116-10	Weight	1.16
Mounting Type	(Top) 1/4"-20 UNC-2B	For Fluid Type	CNG
Seal Material	Flurocarbon	Height	3.9
Diameter	1.75	Maximum Operating Temperature	-40 to 350
Brand	Racor	Division	Engine Mobile Original Equipment Division
Maximum Working Pressure (psi)	5000	Flow Capacity (m3/h)	744 @ 34474 kPa
Maximum Working Pressure (Bar)	345	Port Connection	1/4" NPT x2
Flow Capacity (CFM)	438 @ 5000 psig	Media	Coalescer grade 10
Material	316 Stainless Steel
