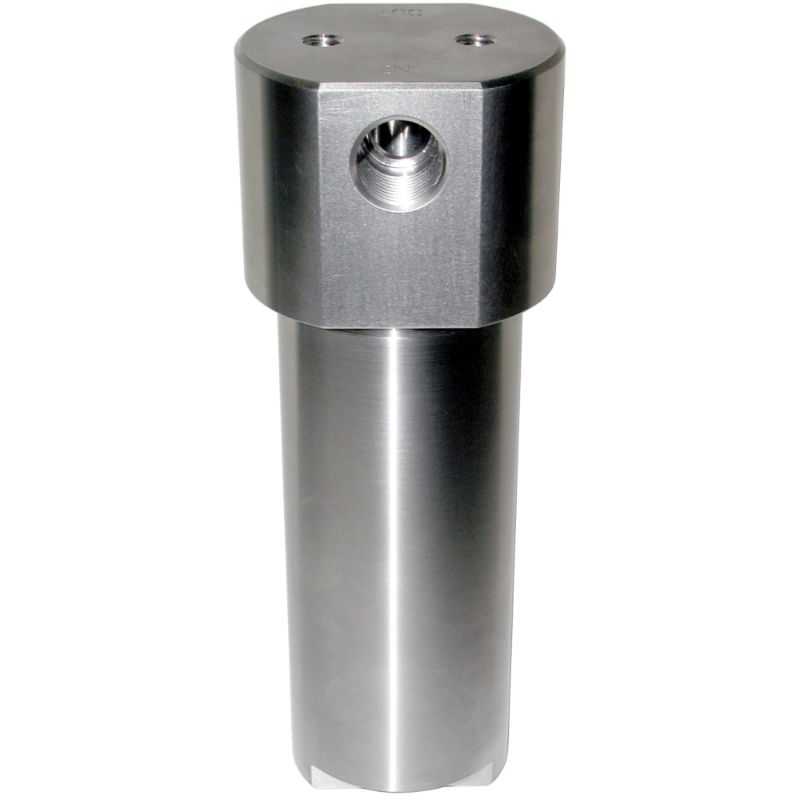

Parker FFC-113-06 - Compressed Natural Gas (CNG) Assemblies – Racor FFC Series

Racor FFC CNG Filter / Service Elements protect alternative fuel system injectors and components by removing aerosol contaminants in CNG as small as 0.3 – 0.6 micron with up to 99.97% efficiency.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-113-06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Element	CLS47113-01	Application	Onboard CNG powered vehicles
Maximum Operating Temperature	-40 to 221	Operating Features	0.5 oz. sump capacity
Drain	Plug	Product Series	Cartridge CNG Fuel Filter
Seal Material	Flurocarbon	Height	8
For Fluid Type	CNG	Diameter	3
Brand	Racor	Division	Engine Mobile Original Equipment Division
Mounting Type	(Top) 3/8”-16 UNC-2B X2	Weight	5.5
Port Connection	1/2" NPT x2	Flow Capacity (CFM)	788 @ 3600 psig
Maximum Working Pressure (Bar)	248	Maximum Working Pressure (psi)	3600
Flow Capacity (m3/h)	1339 @ 24821 kPa	Media	Coalescer grade 06
Material	303 Stainless Steel
