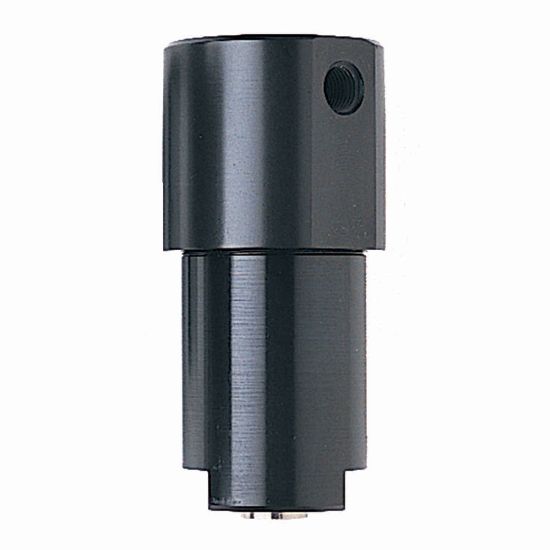

Parker FFC-112E-10 - FFC-110 Compressed Air & Gas Filters - Up To 800 PSIG

Finite's inline compressed natural gas FFC-112 filter Series features a light weight robust construction and is is designed to protect critical engine components from contaminants in CNG fuel.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-112E-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Width	2.28 inch
Specifications Met	N/A	Plating Type	Anodized
Brand	Finite	Maximum Operating Pressure	248 barg
Height	121 to 215 mm depending on configuration.	Application	CNG onboard
Weight	1.5 to 1.9 lb depending on configuration.	Optional Accessories	Mounting Bracket Kit (MB-2S)
Filter Type	Coalescer	Compatible Element	FFC-112 Replacement Element Series
Maximum Operating Temperature	105 °C	Head Material	Aluminum
Minimum Operating Temperature	-40 °F	Drain Port Size	SAE 6 Drain Plug
Bowl Type	Aluminum	Division	Industrial Gas Filtration and Generation Division
Thread Type	NPT	Port Connection (inch)	1/4"
Maximum Flow Rate (cfm)	473 at 3600 PSIG	Bowl Type	Extended
Filter Rating (%)	99.50%	Micron Rating (µm)	1
