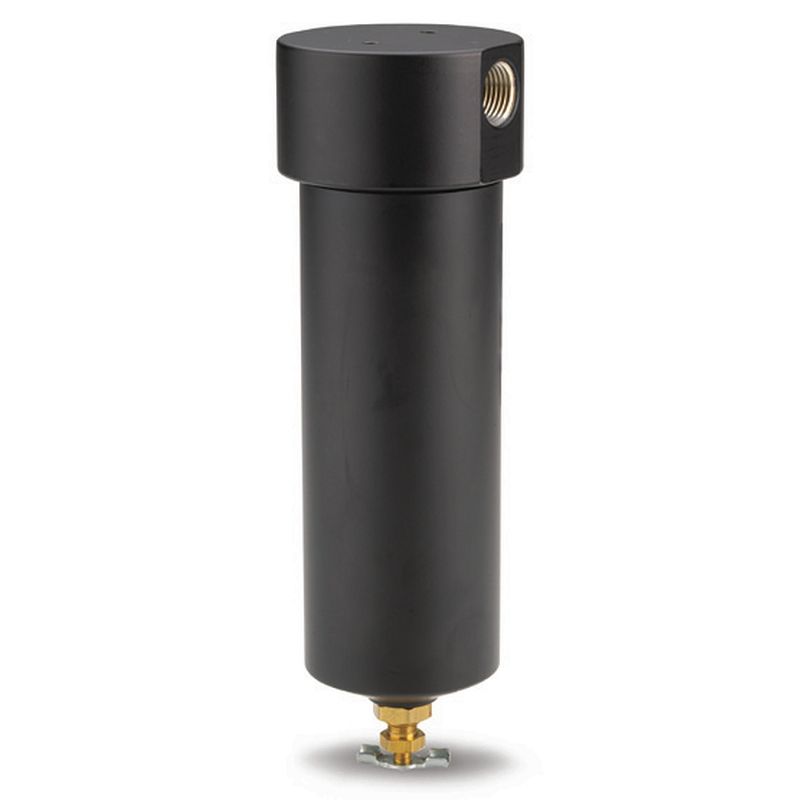

Parker FFC-110L-10 - Compressed Air & Gas Filters - Up to 800 PSIG - FFC-110

Parker Finite inline compressed air and gas FFC-110 filter series is often used onboard CNG (Compressed Natural Gas) powered vehicles.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-110L-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	CNG	Seal Material	Fluorocarbon
Height	10.4	Connection Type	NPT
Compatible Element	CLS110L-10	Optional Accessories	Mounting Bracket Kit (MB-2)
Diameter	3.1	Flow Rate	85
Specifications Met	ECE-110	Maximum Operating Pressure	55
Filter Type	Coalescer	Coating	Chromated
Media	Coalescer grade 10	Mounting Type	(Top) '3/8”-16 UNC-2B X2
Head Material	Aluminum	Minimum Operating Temperature	-40
Drain	1/8" NPT / Brass Petcock	Width	3.1
Brand	Racor	Maximum Operating Temperature	221
Operating Features	4.7 oz. sump capacity	Weight	1.8
Product Series	Cartridge CNG Fuel Filter	Division	Industrial Gas Filtration and Generation Division
Bowl Type	Aluminum	Drain Port Size	1/8
Application	Onboard CNG powered vehicles	Port Connection	1/2" NPT x2
Material	Powder Painted Chromated Aluminum	Port Connection (inch)	1/2"
Filter Rating (%)	95%	Maximum Working Pressure (psi)	800
Micron Rating (µm)	1	Maximum Flow Rate (cfm)	590 at 800 PSIG
Flow Capacity (CFM)	50	Flow Capacity (m3/h)	381 @ 3447 kPa
Maximum Working Pressure (Bar)	55	Media	Coalescer grade 10
Port Connection	1/2" NPT x2
