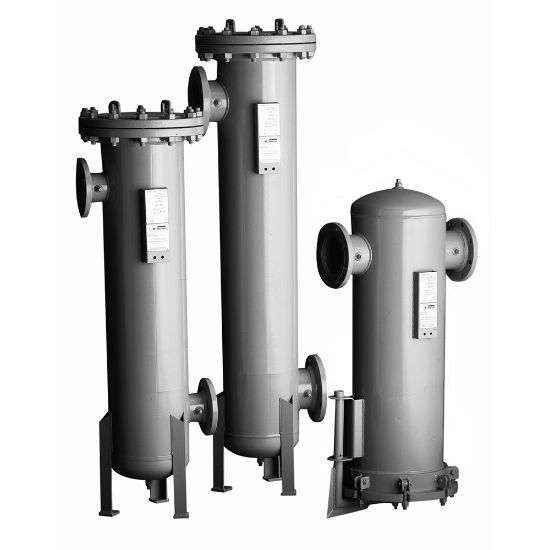

Parker FF10-2207-10QU - Compressed Air & Gas - Up to 185 PSIG - ASME Vessels

Parker’s Finite filter vessels eliminate oil, water, and particulate contamination from large flows of compressed air and gas.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FF10-2207-10QU

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	29610	Maximum Operating Temperature	232
Seal Material	Urethane	Element Removal Clearance	28"
Width	34	Division	Industrial Gas Filtration and Generation Division
Weight	750	Height	96
Brand	Finite	Application	Compressed Air and Gas
Drain Port Size	1/2	Maximum Operating Pressure	185
Filter Type	Coalescer w/ built-in prefilter	Port Connection (inch)	10"
Number of Elements	7	Efficiency Rating %	95
Body Type	Floor Standing Vessel	Port Type	FLANGE
Micron Rating (µm)	1	Maximum Flow Rate (cfm)	17430
Maximum Operating Temperature (F)	450	Replacement Element	10QU51-280
