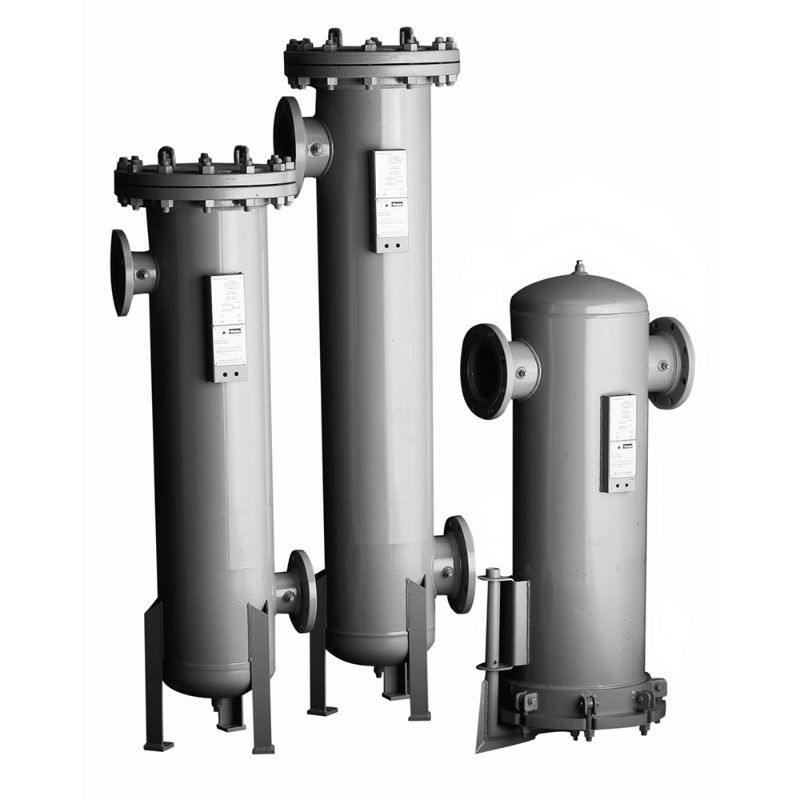

Parker FF10-2207-10CS - Compressed Air & Gas - Up to 185 PSIG - ASME Vessels

Parker’s Finite filter vessels eliminate oil, water, and particulate contamination from large flows of compressed air and gas.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FF10-2207-10CS

Products specifications

Attribute name	Attribute value
Weight	750	Height	96
Brand	Finite	Application	Compressed Air and Gas
Maximum Operating Pressure	185	Drain Port Size	1/2
Maximum Operating Temperature	232	Element Removal Clearance	28"
Seal Material	Silicone	Division	Industrial Gas Filtration and Generation Division
Maximum Flow Rate	29610	Width	34
Maximum Operating Temperature (F)	450	Number of Elements	7
Efficiency Rating %	95	Body Type	Floor Standing Vessel
Micron Rating (µm)	1	Port Type	FLANGE
Replacement Element	10CS51-280	Filter Type	Coalescer
Port Connection (inch)	10"	Maximum Flow Rate (cfm)	17430
