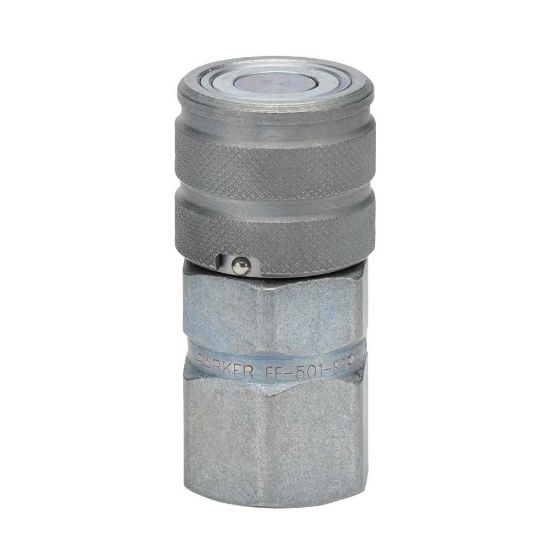

Parker FF-501-8FP-E4 - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

AFP Availability:	Quote Required
Partner Available:	9 In Stock

Brand Parker

Part No. FF-501-8FP-E4

$206.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	36 mm
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Application	Hydraulic, non-spill	Minimum Operating Temperature	-15 °F
Plating Type	Zinc nickel plating	Product Type	Push to connect
Body Material	Steel	Seal Material	Fluorocarbon
Flow Rate	12 Gal/min	Valve Type	Non-spill
Connection Type	Female NPSF	Connection Thread Size (inch)	1/2 - 14
Interchange Type	na	Coupling Half	Female Coupler
Body Size (inch)	1/2	Maximum Operating Pressure	3000
