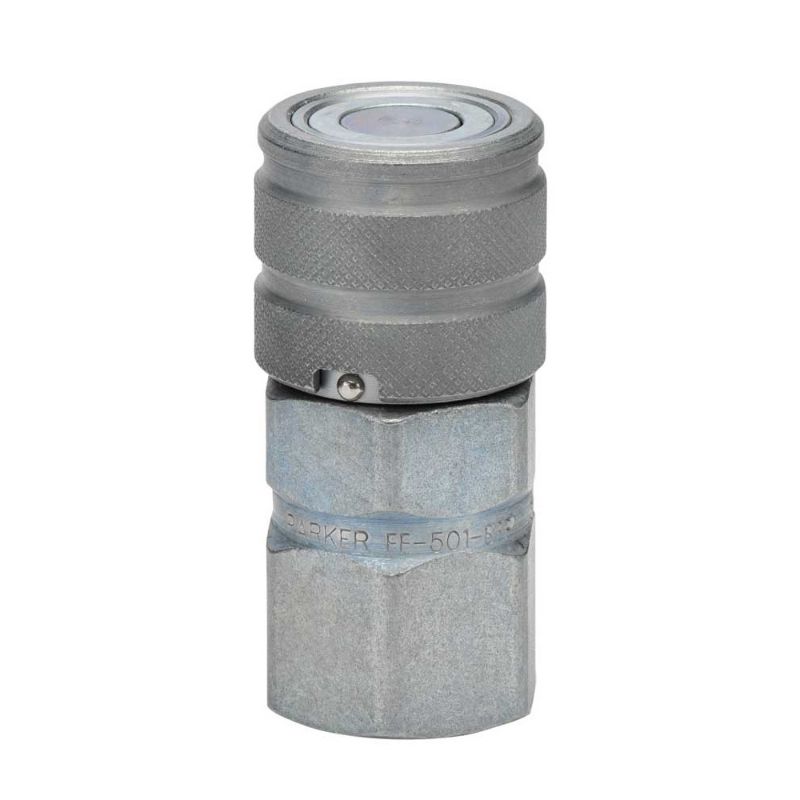

Parker FF-501-10FO - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Name: Parker FF-501-10FO - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
SKU: FF-501-10FO
Price: 167.90 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

AFP Availability:

29 In Stock

North Chesterfield, VA	10
Johnson City, TN	7 (Pickup only)
Jacksonville, FL	6
Richmond, VA	4 (Pickup only)
Norfolk, VA	2

Partner Available:

222 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. FF-501-10FO

$167.90/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane/Nitrile
Flow Rate	12 Gal/min	Valve Type	Non-spill
Dimensional Weight	1.075 lb	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Product Type	Push to Connect	Application	Hydraulics
Plating Type	Zinc nickel plating	Hex Size	36 mm
Body Material	Steel	Body Size (inch)	1/2
Connection Thread Size (inch)	7/8 - 14	Maximum Operating Pressure	3000
Interchange Type	na	Connection Type	Female UNF
Coupling Half	Female Coupler
