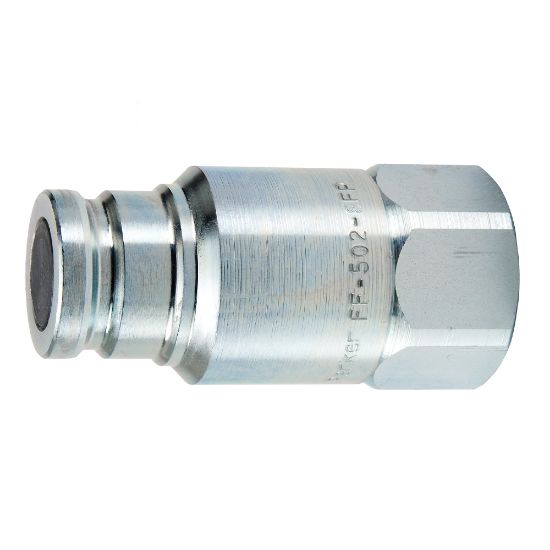

Parker FF-252-4FP-E4 - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FF-252-4FP-E4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-15 °F	Hex Size	1 inch
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Valve Type	Non-spill	Product Type	Push to Connect
Seal Material	Fluorocarbon	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Application	Hydraulics
Flow Rate	3 Gal/min	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Male Nipple	Body Size (inch)	1/4
Maximum Operating Pressure	5000	Connection Type	Female NPSF
Interchange Type	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
