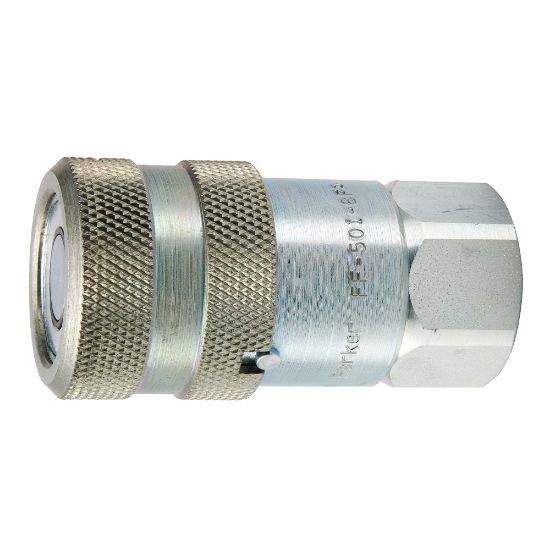

Parker FF-251-4FP-E4 - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FF-251-4FP-E4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400 °F	Hex Size	1 inch
Division	Quick Coupling Division	Minimum Operating Temperature	-15 °F
Body Material	Steel	Seal Material	Fluorocarbon
Product Type	Push to Connect	Plating Type	Zinc with clear trivalent chromate
Flow Rate	3 Gal/min	Application	Hydraulics
Valve Type	Non-spill	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Connection Type	Female NPSF
Body Size (inch)	1/4	Interchange Type	na
Maximum Operating Pressure	5000

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
