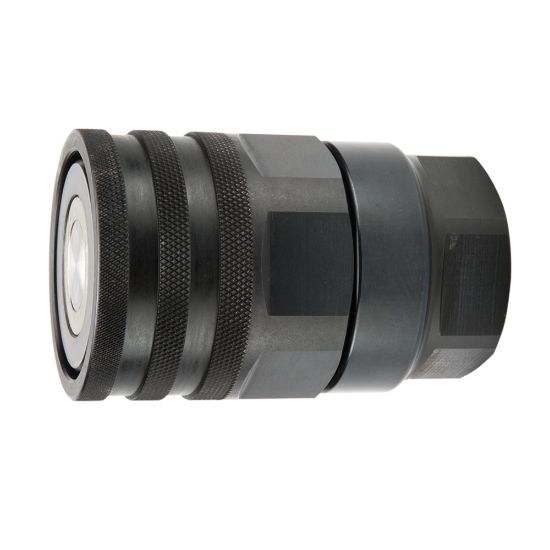

Parker FET-1001-20FO - Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. FET-1001-20FO

$379.35

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Plating Type	Black FNC Coating	Application	High Impulse Hydraulics
Dimensional Weight	0.6232014388489209 lb	Hex Size 2	2-3/16 inch
Valve Type	Non-spill	Seal Material	Polyurethane/Nitrile
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Product Type	Thread to Connect	Hex Size 1	65 mm
Body Material	Steel	Maximum Operating Pressure	6000
Body Size (inch)	1	Connection Type	Female UNF
Body Material	Steel	Connection Thread Size (inch)	1 5/8 - 12
Coupling Half	Female Coupler
