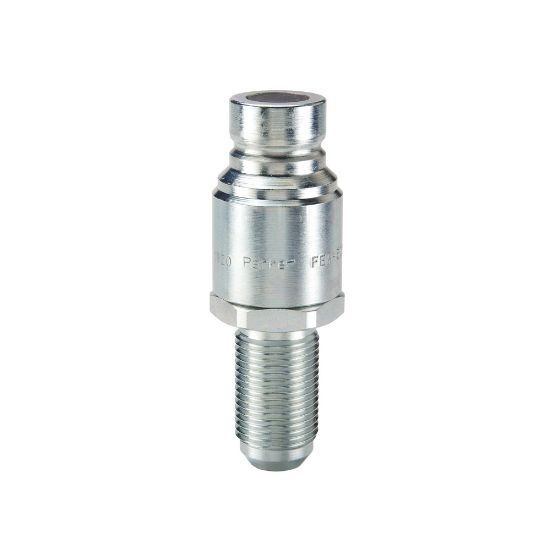

Parker FEM-622-16BMF - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FEM-622-16BMF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hex Size	36 mm	Application	Non-Spill
Plating Type	Zinc Nickel	Specifications Met	HTMA
Seal Material	Polyurethane/Nitrile	Flow Rate	20 Gal/min
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Product Type	Push to Connect	Maximum Operating Temperature	250 °F
Body Material	Steel	Valve Type	Non-spill
Coupling Half	Male Nipple	Connection Type	Male Bulkhead Flare
Maximum Operating Pressure	5000	Connection Thread Size (inch)	1 5/16-12 UN
Body Size (inch)	5/8
