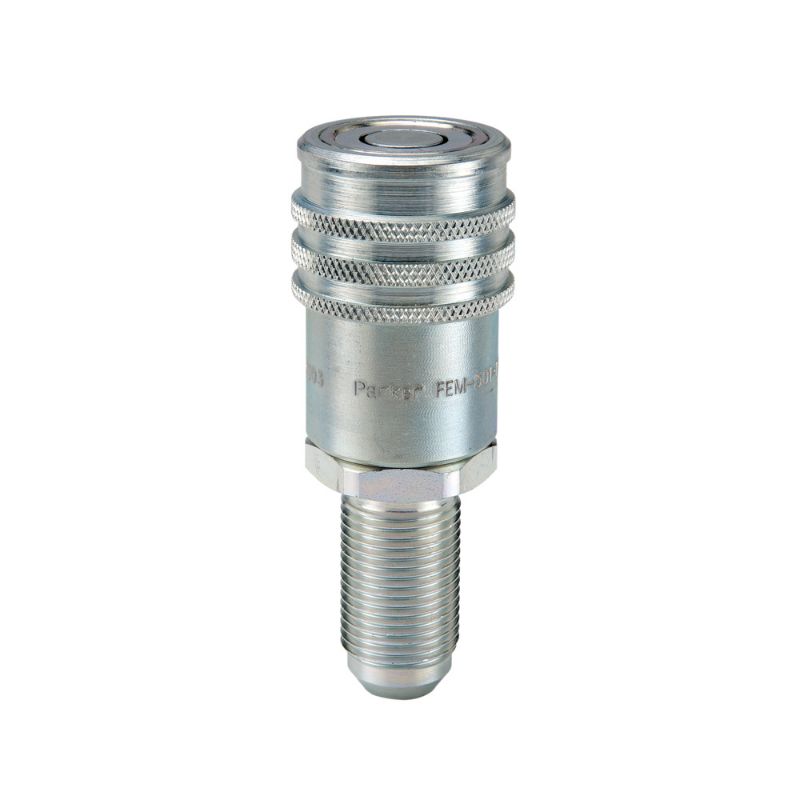

Parker FEM-621-16BMF-NL - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FEM-621-16BMF-NL

$162.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Plating Type	Zinc Nickel
Application	Hydraulics	Minimum Operating Temperature	-40 °F
Body Material	Steel	Hex Size	40 mm
Seal Material	Polyurethane/Nitrile	Specifications Met	HTMA
Product Type	Push to Connect	Flow Rate	20 Gal/min
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Connection Type	Male Bulkhead Flare	Coupling Half	Female Coupler
Body Size (inch)	5/8	Connection Thread Size (inch)	1 5/16-12 UN
Valve Type	Non-spill	Maximum Operating Pressure	5000

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
