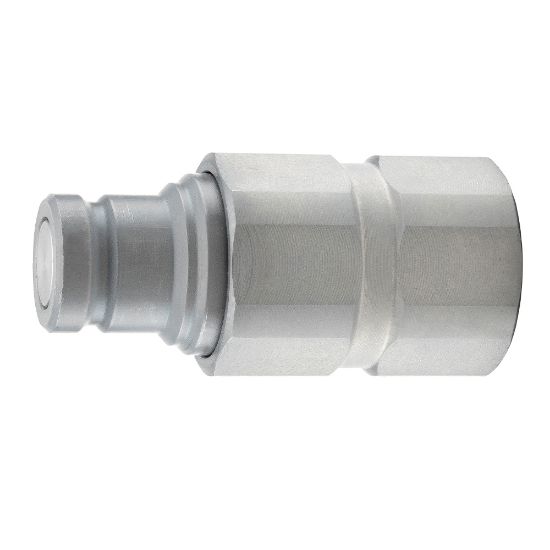

Parker FEM-502-10FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Name: Parker FEM-502-10FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series
SKU: FEM-502-10FO
Price: 48.84 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

AFP Availability:

99 In Stock

North Chesterfield, VA	23
Richmond, VA	16 (Pickup only)
Summerville, SC	15
East Knoxville, TN	9
Sumter, SC	6
Fayetteville, NC	5
Grovetown, GA	5
Norfolk, VA	4
Jacksonville, FL	4
West Knoxville, TN	4
Johnson City, TN	4 (Pickup only)
Ashland, VA	2 (Pickup only)
Mooresville, NC	2

Partner Available:

428 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. FEM-502-10FO

$48.84/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	36 mm
Maximum Operating Temperature	250 °F	Product Type	Push to Connect
Plating Type	Zink Nickel	Application	Non-spill
Flow Rate	12 Gal/min	Body Material	Steel
Minimum Operating Temperature	-40 °C	Specifications Met	HTMA
Seal Material	NBR	Dimensional Weight	0.15995203836930455 lb
Division	Quick Coupling Division	Connection Type	Female NPSF
Valve Type	Non-spill	Connection Thread Size (inch)	7/8 - 14
Coupling Half	Male Nipple	Body Size (inch)	1/2
Maximum Operating Pressure	5000

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
