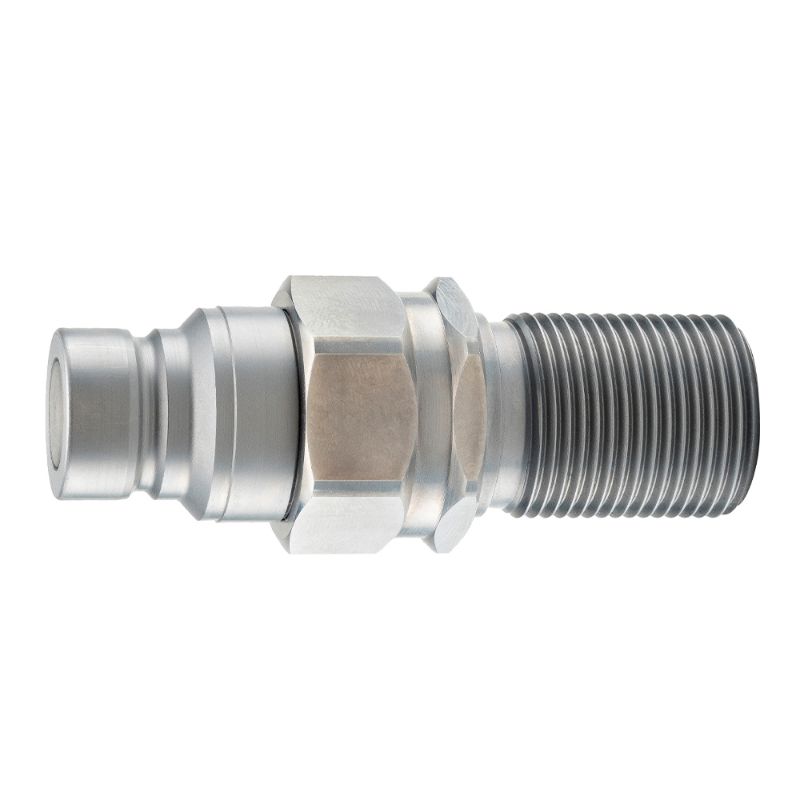

Parker FEM-502-10BMS - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Name: Parker FEM-502-10BMS - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series
SKU: FEM-502-10BMS
Price: 53.83 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

AFP Availability:

26 In Stock

Richmond, VA	7
Knoxville, TN	3
Grovetown, GA	3
Richmond, VA	2 (Pickup only)
Jacksonville, FL	2
Fayetteville, NC	2
Knoxville, TN	2
Johnson City, TN	2 (Pickup only)
Mooresville, NC	2
Ashland, VA	1 (Pickup only)

Partner Available:

102 In Stock

Brand Parker

Part No. FEM-502-10BMS

$53.83/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Body Material	Steel	Dimensional Weight	0.15995203836930455 lb
Hex Size	31.75 mm	Minimum Operating Temperature	-40 °F
Application	Non-Spill	Product Type	Push to Connect
Flow Rate	12 Gal/min	Specifications Met	ISO 16028
Plating Type	Zinc Nickel	Division	Quick Coupling Division
Seal Material	Polyurethane/Nitrile	Connection Type	Male bulkhead face seal
Body Size (inch)	1/2	Maximum Operating Pressure	5000
Valve Type	Non-spill	Connection Thread Size (inch)	1 - 14
Coupling Half	Male Nipple

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
