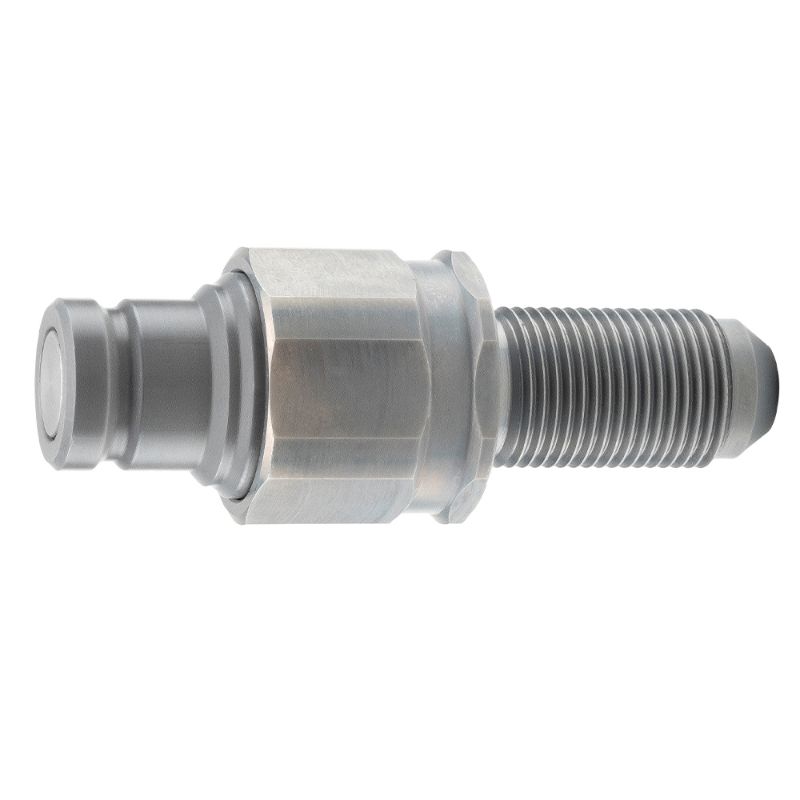

Parker FEM-502-10BMF - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Name: Parker FEM-502-10BMF - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series
SKU: FEM-502-10BMF
Price: 54.92 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

AFP Availability:

24 In Stock

Grovetown, GA	8
North Chesterfield, VA	4
Fayetteville, NC	3
West Knoxville, TN	3
East Knoxville, TN	3
Richmond, VA	2 (Pickup only)
Summerville, SC	1

Partner Available:

33 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. FEM-502-10BMF

$54.92/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Application	Non-spill	Plating Type	Zinc Nickel
Hex Size	31.75 mm	Body Material	Steel
Seal Material	Polyurethane/Nitrile	Flow Rate	12 Gal/min
Product Type	Push to Connect	Specifications Met	HTMA
Dimensional Weight	0.12582258992805753 lb	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Connection Type	Male Bulkhead Flare
Connection Thread Size (inch)	7/8 - 14	Coupling Half	Male Nipple
Body Size (inch)	1/2	Valve Type	Non-spill
Maximum Operating Pressure	5000

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
