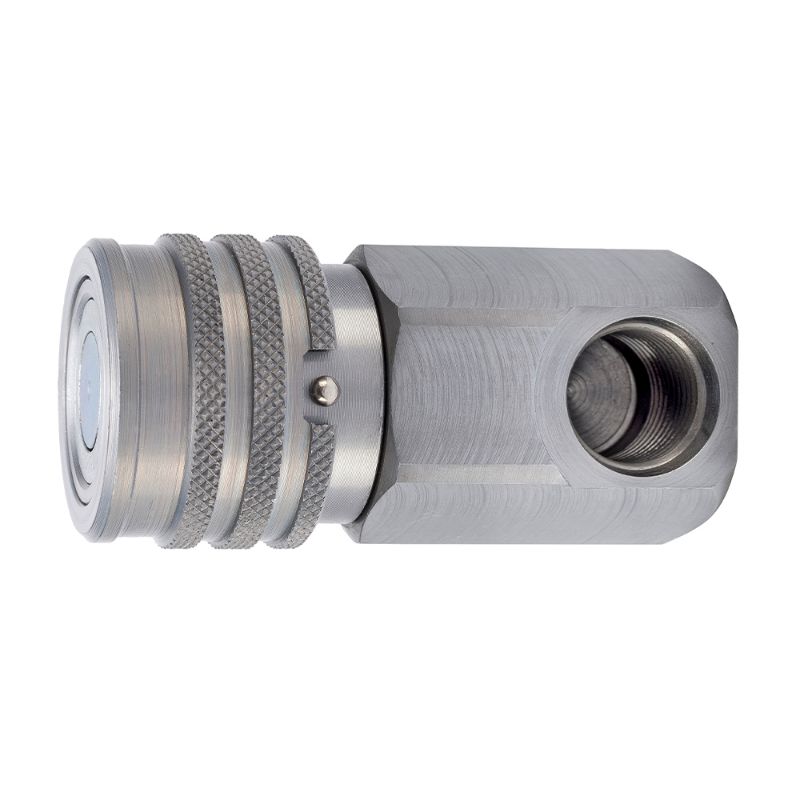

Parker FEM-501-C6FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FEM-501-C6FO

$143.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Specifications Met	ISO	Division	Quick Coupling Division
Hex Size	36	Maximum Operating Temperature	250
Plating Type	Zinc Nickel	Product Type	Push to Connect
Application	Hydraulics	Flow Rate	12
Minimum Operating Temperature	-40	Body Material	Steel
Body Size (inch)	1/2	Connection Thread Size (inch)	9/16- 18
Connection Type	90 Degree Female UNF	Maximum Operating Pressure	5000
Valve Type	Non-spill	Coupling Half	Female Coupler

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
