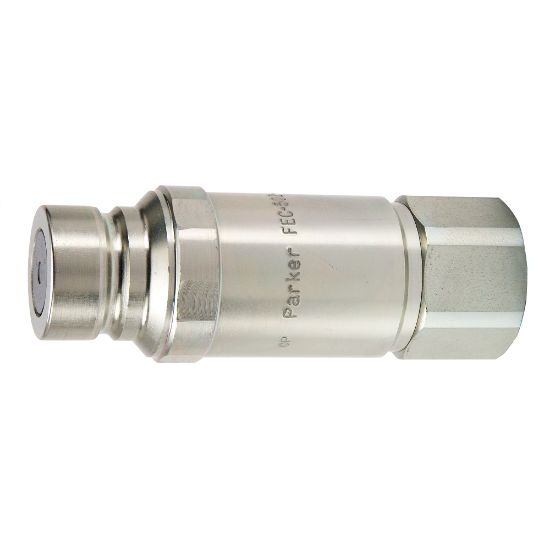

Parker FEC-622-12FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FEC-622-12FO

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	20 Gal/min	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Hex Size	1.50 inch
Body Material	Steel	Product Type	Push to Connect
Maximum Operating Temperature	250 °F	Plating Type	Zink Nickel
Application	Hydraulics	Specifications Met	ISO 16028
Seal Material	NBR	Maximum Operating Pressure	3625
Coupling Half	Male Nipple	Body Size (inch)	5/8
Connection Thread Size (inch)	1 1/16 - 12	Valve Type	Non-Spill, Connect under pressure
Connection Type	Female UNF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
