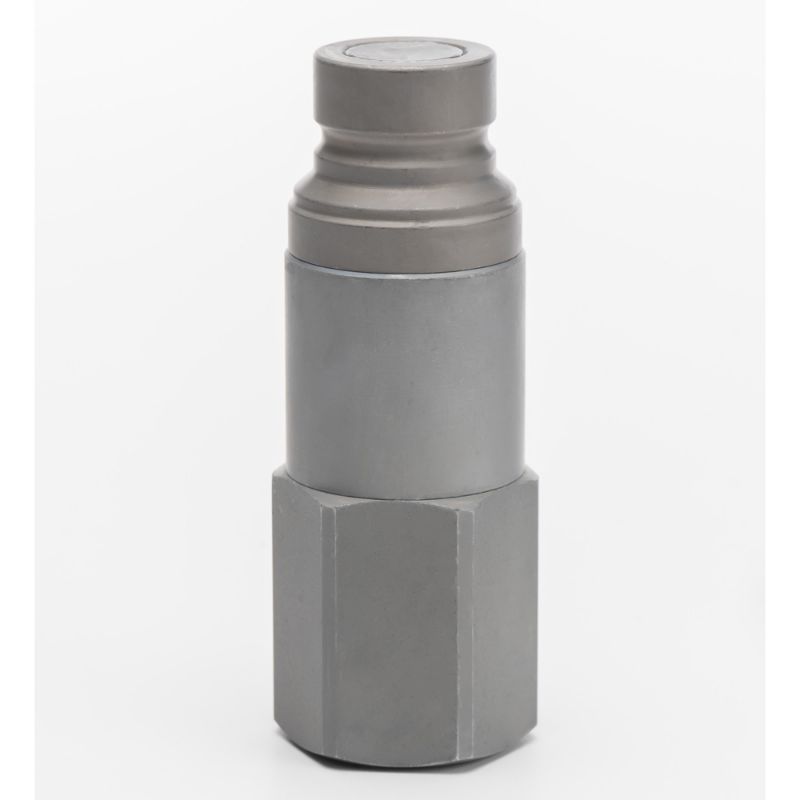

Parker FEC-502-10FO - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	Quote Required
Partner Available:	44 In Stock

Brand Parker

Part No. FEC-502-10FO

$119.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	12 Gal/min
Seal Material	NBR	Division	Quick Coupling Division
Hex Size	1.125 inch	Maximum Operating Temperature	250 °F
Body Material	Steel	Product Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate	Application	Non-Spill
Specifications Met	ISO 16028	Dimensional Weight	0.12464028776978417 lb
Minimum Operating Temperature	-40 °C	Coupling Half	Male Nipple
Connection Thread Size (inch)	7/8 - 14	Maximum Operating Pressure	3625
Valve Type	Non-Spill, Connect under pressure	Body Size (inch)	1/2
Connection Type	Female UNF
