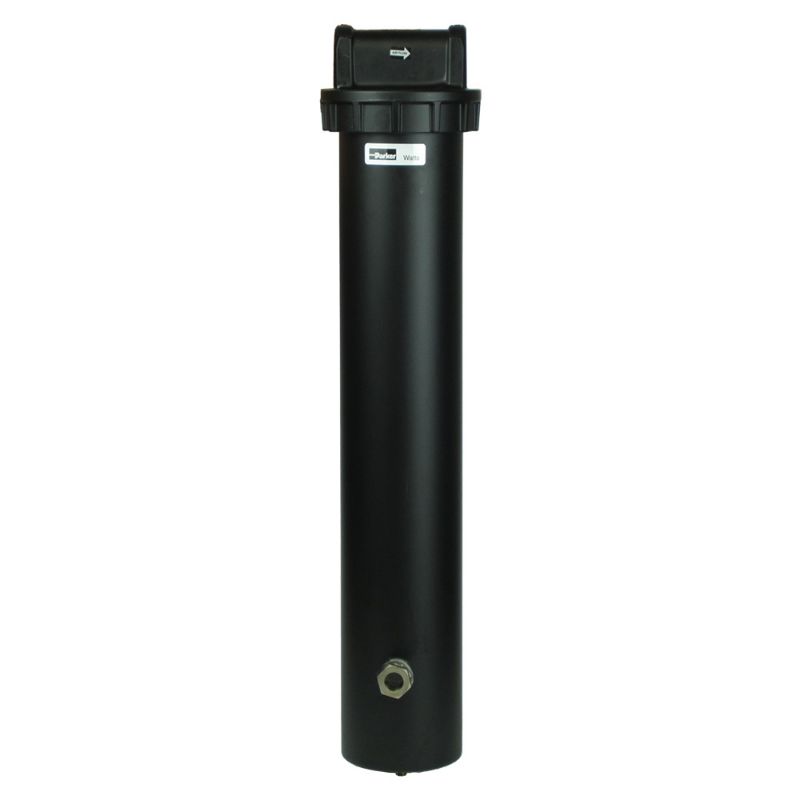

Parker FDD30-08 - Compressed Air & Gas - Up to 300 PSIG - FDD Desiccant Dryer Series

Parker’s Finite FDD Desiccant Dryer Series are the simplest and most reliable method of insuring sensitive pneumatic equipment is not exposed to damaging moisture.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FDD30-08

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	51 m3/hour	Dew Point	-40 °F
Maximum Operating Pressure	300 psig	Brand	Finite
Weight	13 lb (Housing only)	Tank Capacity	5 lb
Division	Industrial Gas Filtration and Generation Division	Connection Type	NPT
Width	126 mm	Height	591 mm
Maximum Operating Temperature	180 °F	Port Connection (inch)	1"
Maximum Flow Rate (cfm)	30

Product resources

Literature and Reference Materials

Finite Compressed Air & Gas Filtration Products Capabilities Guide (PDF)
Compressed Air & Gas Desiccant Dryers For Point of Use and OEM Applications (PDF)
