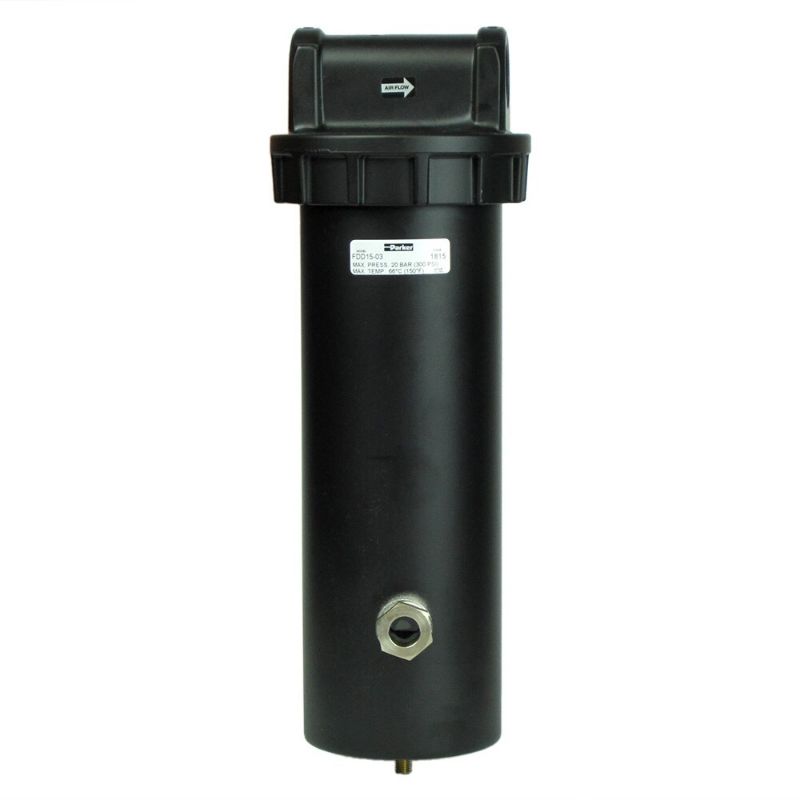

Parker FDD15-04 - Compressed Air & Gas - Up to 300 PSIG - FDD Desiccant Dryer Series

Parker’s Finite FDD Desiccant Dryer Series are the simplest and most reliable method of insuring sensitive pneumatic equipment is not exposed to damaging moisture.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FDD15-04

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	25 m3/hour	Dew Point	-40 °F
Weight	8 lb (Housing only)	Width	4.94 inch
Tank Capacity	2.5 lb	Brand	Finite
Maximum Operating Pressure	20.7 barg	Height	343 mm
Maximum Operating Temperature	180 °F	Connection Type	NPT
Division	Industrial Gas Filtration and Generation Division	Maximum Flow Rate (cfm)	15
Port Connection (inch)	1/2"

Product resources

Literature and Reference Materials

Finite Compressed Air & Gas Filtration Products Capabilities Guide (PDF)
Compressed Air & Gas Desiccant Dryers For Point of Use and OEM Applications (PDF)
