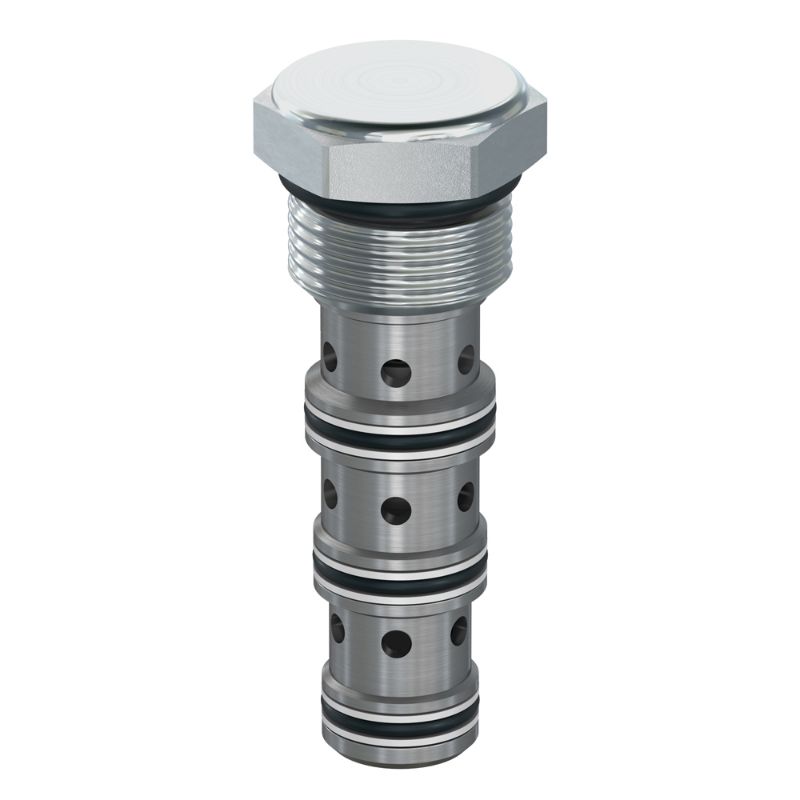

Parker FDC101A11V - Flow Divider/Combiner Valves

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FDC101A11V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.14 kg	Actuation Type	Interlocking Spools
Seal Material	Fluorocarbon	Ratio	50/50
Flow Rate	45 L/min	Operating Temperature	-26 to +204 °C
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Function	Flow Divider/Combiner	Body Material	n/a
Connection Type	n/a	Valve Material	All parts steel. All operating parts hardened steel
Installation Torque	22 Nm	Cavity Size	C10-4
Operation Type	Automatic	Standard Flow Rate Setting	3.8-11.3 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	245 bar
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Connection Size	n/a
Configuration	n/a	Maximum Inlet Pressure Rating	3500 psi
Maximum Flow Rate	12 Gal/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate Accuracy	10%	Maximum Operating Temperature	+204 °C
Minimum Operating Temperature	-26 °C	Flow Rate	12 GAL/MIN, 45 L/MIN
Seal Material	Fluorocarbon	Ratio	50/50
Standard Flow Rate Setting	1-3 GAL/MIN, 3.8-11.3 L/MIN
