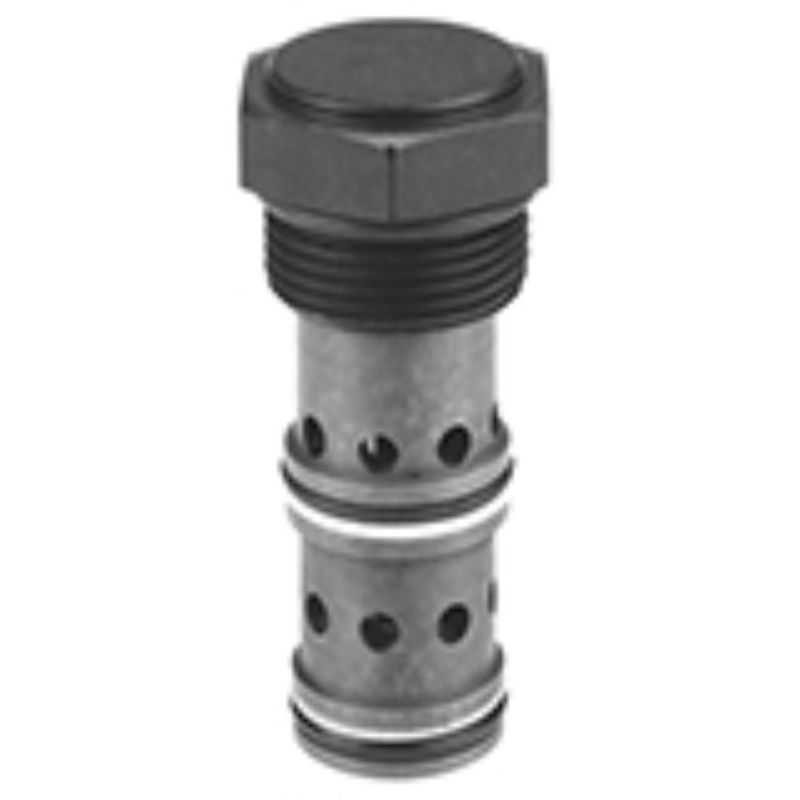

Parker FCR161F - Pressure Compensators/Control Elements

REGIONAL - Parker’s pressure compensator valves provide constant flow regardless of upstream or downstream pressure changes via a fixed or adjustable orifice. These valves can handle flows up to 150 lpm (40 gpm) and pressures up to 245 bar (3500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FCR161F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Inlet Pressure Rating	245 bar	Minimum Operating Temperature	-30 °F
Maximum Operating Temperature	245 bar	Connection Size	n/a
Operating Temperature	-30 to +250 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Flow Rate	40 Gal/min
Function	Pressure Compensating Valve	Maximum Operating Pressure	3500 psi
Adjustment Mechanism	Fixed	Flow Rate Accuracy	10%
Valve Material	All parts steel. All operating parts hardened steel	Pressure Differential	160 psi
Installation Torque	40 lb-ft	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Restrictive type	Configuration	Used with external orifice (fixed or variable)
Operation Type	Pressure sensing	Seal Material	Nitrile
Weight	0.34 kg	Cavity Size	C16-3
Connection Type	n/a	Body Material	n/a
Division	Hydraulic Systems Division	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	40 Gal/min	Pressure Differential	160 PSI, 11 BAR
Seal Material	Nitrile	Maximum Flow Rate	40 GAL/MIN, 150 L/MIN
