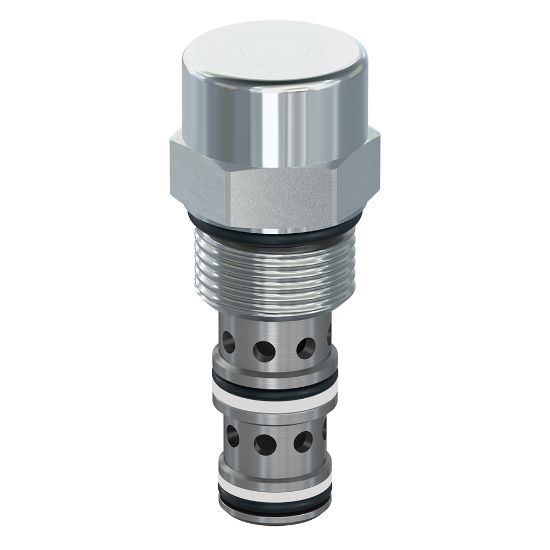

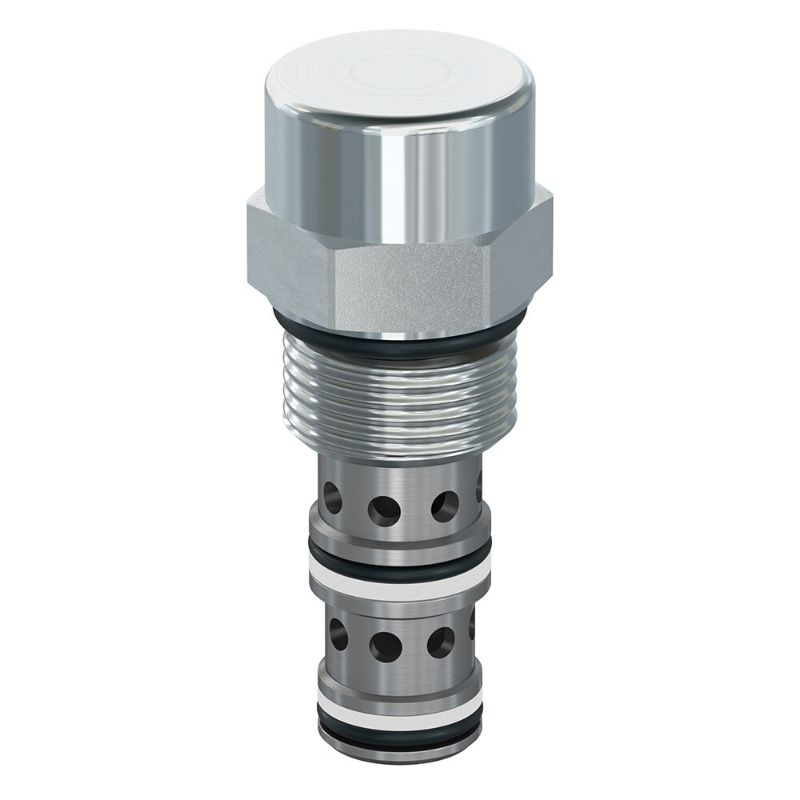

Parker FCR101F - Pressure Compensators/Control Elements

REGIONAL - Parker’s pressure compensator valves provide constant flow regardless of upstream or downstream pressure changes via a fixed or adjustable orifice. These valves can handle flows up to 150 lpm (40 gpm) and pressures up to 245 bar (3500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FCR101F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Adjustment Mechanism	Fixed	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	10%	Pressure Differential	160 psi
Flow Rate	38 L/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Used with external orifice (fixed or variable)	Maximum Flow Rate	38 L/min
Actuation Type	Restrictive type	Division	Hydraulic Systems Division
Seal Material	Nitrile	Operation Type	Pressure sensing
Body Material	n/a	Connection Type	n/a
Division	Hydraulic Cartridge Systems Division	Installation Torque	22 Nm
Operating Temperature	-34 to +121 °C	Cavity Size	C10-3
Maximum Operating Temperature	245 bar	Connection Size	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Weight	0.3 lb
Maximum Inlet Pressure Rating	3500 psi	Function	Pressure Compensating Valve
Maximum Operating Pressure	3500 psi	Maximum Flow Rate	10 GAL/MIN, 38 L/MIN
Pressure Differential	160 PSI, 11 BAR	Seal Material	Nitrile
