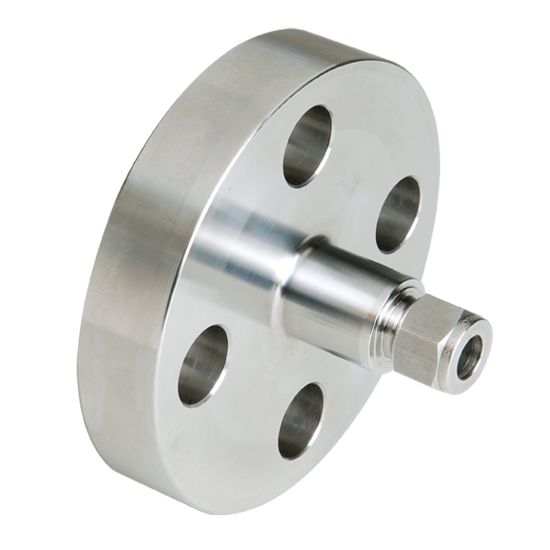

Parker FCB12A24F600 - Flange to Tube Fitting, ANSI Flange Series

Parker's one piece integral connectors allow the user to switch from piping flange standards to instrument compression with minimum cost and added safety. This system eliminates the need for additional connections.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FCB12A24F600

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flange Size	1-1/2	ANSI Flange Class	600
Materials of Construction	Stainless Steel AISI 316	Connection Type	Compression Two Ferrule (A-LOK®)
Division	Instrumentation Products Division	Connection Size	3/4
Flange Face Type	Raised Face	ANSI Flange Class	600
Flange Face	Raised Face	Connection Size	3/4"
Materials of Construction	Stainless Steel AISI 316 / 316L	Flange Size	1-1/2"
Connection Type	Compression, Twin Ferrule (A-LOK®)
