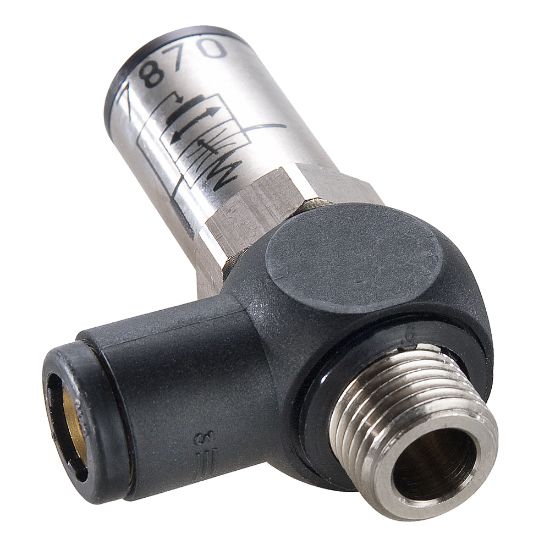

Parker FC908-8M-4G - Slow Start Fittings

Slow start fittings protect your system by preventing sudden shocks. On start up, they control the pressure increase in the downstream circuit which helps prevent the risk of industrial accidents.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FC908-8M-4G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	5 °F	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
Maximum Operating Temperature	140 °F	Division	Fluid System Connectors Division
Maximum Operating Pressure	10 bar	Media	Compressed Air
Body Material	Nickel Plated Brass	Connection 1 Thread Size (inch)	na
Connection 1 Tube O.D. (mm)	8	Connection 1 Style	Push-to-Connect
Connection 2 Thread Size (mm)	1/4	Style	Tube to Pipe
Connection 2 Style	BSPP	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (inch)	na

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
