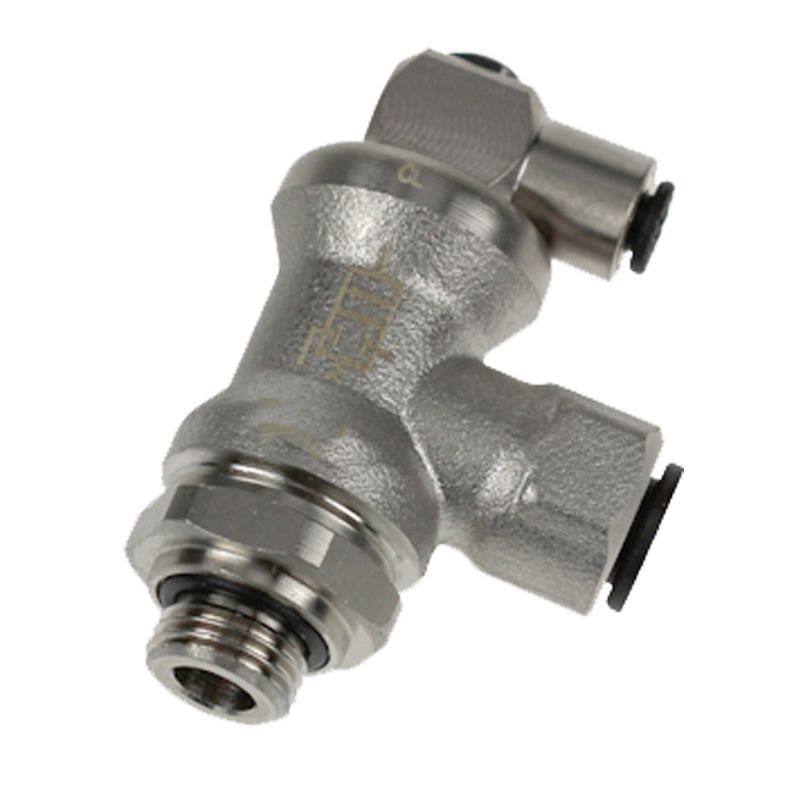

Parker FC601-6M-4G - Blocking Valves

Parker's blocking valves prevents damage to work and equipment in the event of a loss of pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FC601-6M-4G

$263.72

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Minimum Operating Temperature	-20 °C	Seal Material	Nitrile
Maximum Operating Pressure	10 bar	Maximum Operating Temperature	70 °C
Gripping Ring Material	Stainless Steel	Connection 1 Size	Push-to-connect
Media	Compressed Air	Connection 1 Thread Size	N/A
Connection 1 Tube Outside Diameter	N/A	Product Style	Tube to Pipe
Body Material	Treated Brass	Connection 2 Size	BSPP
Connection 2 Thread Size	1/4 mm	Application	Machine Tool, Pneumatics, Textile, Packaging
Shape	Push-to-Connect	Pilot Line Thread Size	4 mm
