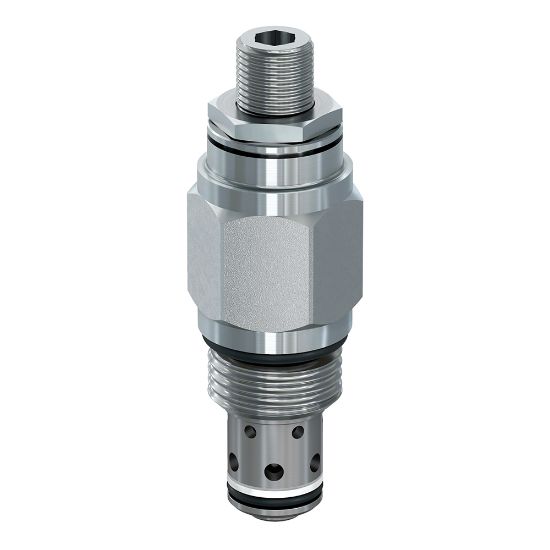

Parker FC101K600V - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FC101K600V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Flow Rate	15 Gal/min	Maximum Flow Rate	15 Gal/min
Installation Torque	22 Nm	Maximum Operating Pressure	3500 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3500 psi
Minimum Operating Temperature	-26 °C	Weight	0.23 kg
Function	Flow Control	Adjustment Mechanism	Knob
Cavity Size	C10-2	Maximum Operating Temperature	+400 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	N/A	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Reverse Check
Actuation Type	Pressure Compensated	Operation Type	Manually operated
Flow Rate Display Range	4-8 Gal/min	Standard Flow Rate Setting	6 Gal/min
Seal Material	Fluorocarbon	Adjustment Mechanism	Knob
Configuration	Reverse Check	Maximum Flow Rate	15 GAL/MIN, 56 L/MIN
Flow Rate Display Range	4-8 GAL/MIN, 15-30 L/MIN	Standard Flow Rate Setting	6 GAL/MIN, 22.5 L/MIN
