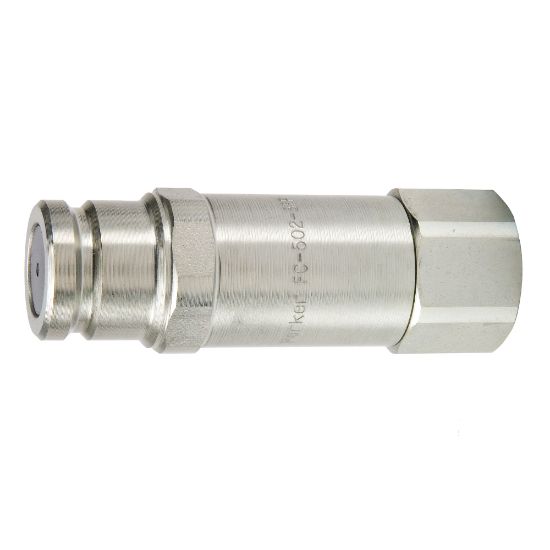

Parker FC-502-8FP - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FC-502-8FP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.12464028776978417 lb	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Application	Hydraulics	Hex Size	1.125 inch
Flow Rate	12 Gal/min	Valve Type	Non-spill
Seal Material	Polyurethane/Nitrile	Product Type	Push to Connect
Body Size (inch)	1/2	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/2 - 14	Maximum Operating Pressure	3000
Connection Type	Female NPSF	Interchange Type	na
