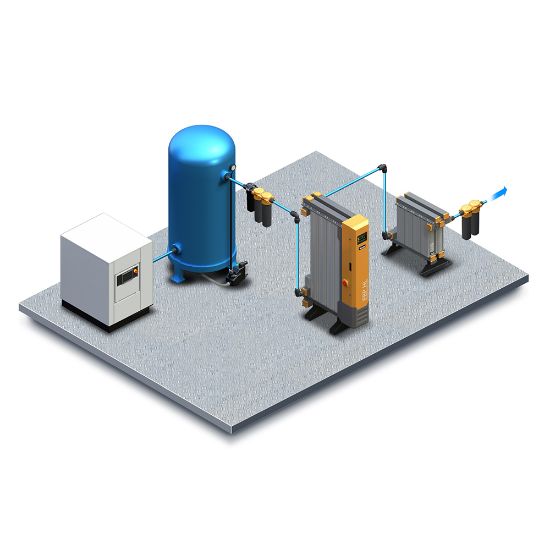

Picture of Parker FBPHL130-70G13BC - FBP HL/LE 100-170 Large Flow Heatless Regeneration Compressed Air Treatment System

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker FBPHL130-70G13BC - FBP HL/LE 100-170 Large Flow Heatless Regeneration Compressed Air Treatment System

Large flow, compressed air treatment systems with oil vapour reduction. Delivering food, beverage and pharmaceutical grade compressed air for direct contact and in-direct contact applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. FBPHL130-70G13BC
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
BrandParkerTechnologyFiltration
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Ingress Protection RatingIP44Operating Temperature5 to 50 °C
Noise Level< 75 dBAAmbient Temperature55.0 °C Maximum
Depth550.0 mmWidth1025.0 mm
Height74.5 inchWeight450 kg
Product StyleHeatless RegenerationOperating Pressure5 to 13 barg
Specifications MetPED 2014/68/EUPower Supply Voltage100 to 240 VAC (±10%) single phase, 50/60Hz
Industry• Food & Beverage Manufacturing<br/>• Pharmaceutical ManufacturingApplicationCompressed Air Treatment - Food Beverage Pharmaceutical Grade Compressed Air
Product TypeCompressed Air Dryer with Oil Vapour Reduction and FiltrationProduct SeriesFBP - Food Beverage Pharmaceutical - Large Flow Heatless (Models FBP HL 100-170)
Filter Included<b>Dryer Inlet</b><br/>General Purpose Coalescing Filter<br/>AOPX045HGFX<br/>and<br/>High Efficiency Coalescing Filter<br/>AAPX045HGFX<br/><br/><b>Dryer Outlet</b><br/>General Purpose Dry Particulate Filter<br/>AOPX045HGFX<br/>and<br/>High Efficiency CoaCarbon Adsorption Filter IncludedOVR400IGXX
Connection TypeBSPPPort Size2½"
Pressure Dew Point-70°C (-100°F)Flow Rate714 m³/h/hr @ 7 barg, 35°C (420 cfm @ 102 psig, 95°F)
Pump TypeN/AISO GradeClass 1.1.0
